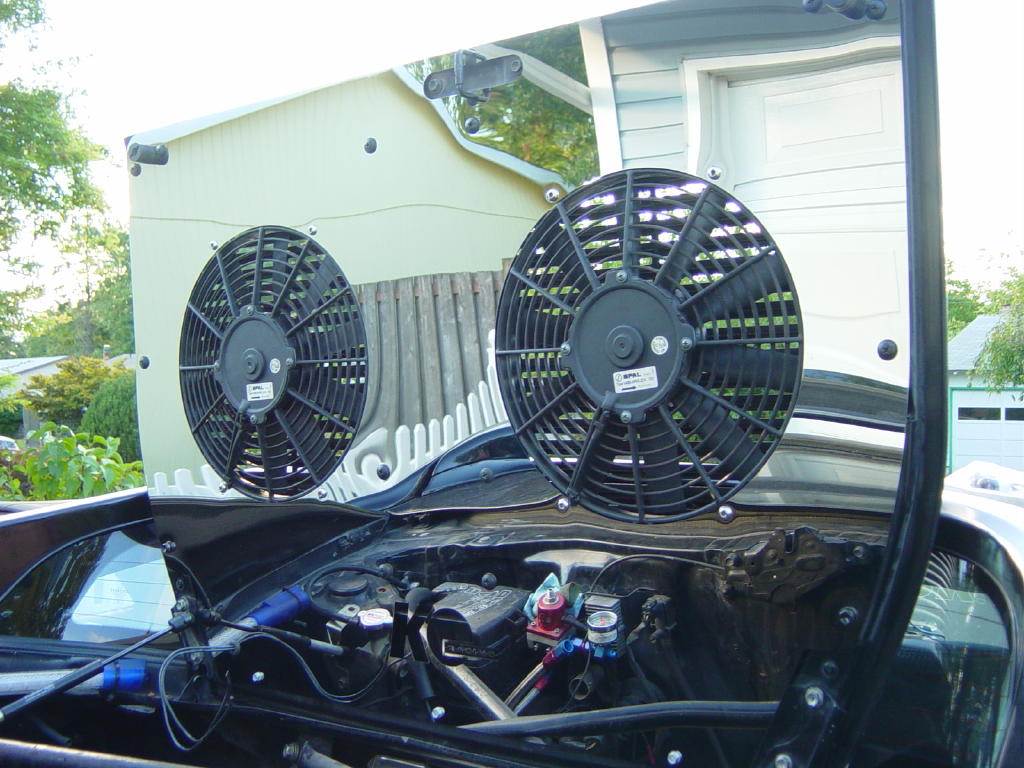

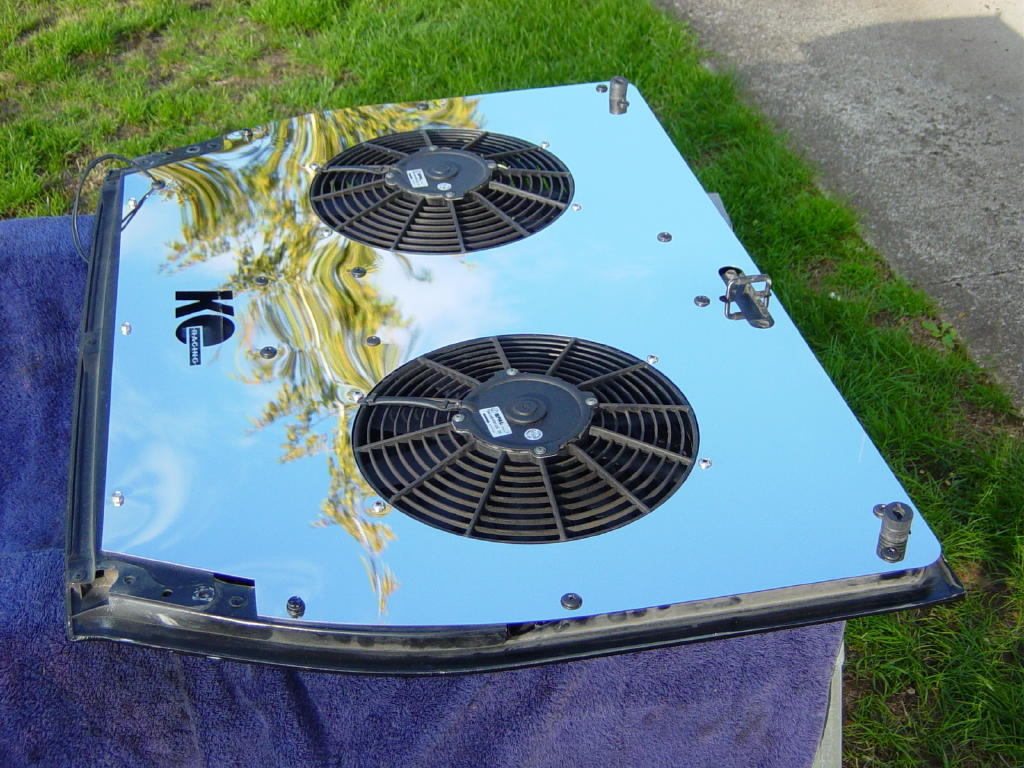

KO Racing Engine Lid Fan Shroud

NEW! from KO Racing, the Mirror Polished Engine Lid Fan Shroud for 91-95 Turbo MR2's.The shroud is made from mirror polished stainless steel, so it won't rust, and includes two SPAL 11" pusher fans to move hot air out of the engine bay. The SPAL fans out perform every other brand of fan under real world conditions, which is why we use them.

See the installation instructions on the Technical Articles Page.(coming soon)

$385 each


Full Sized Image


Full Sized Image

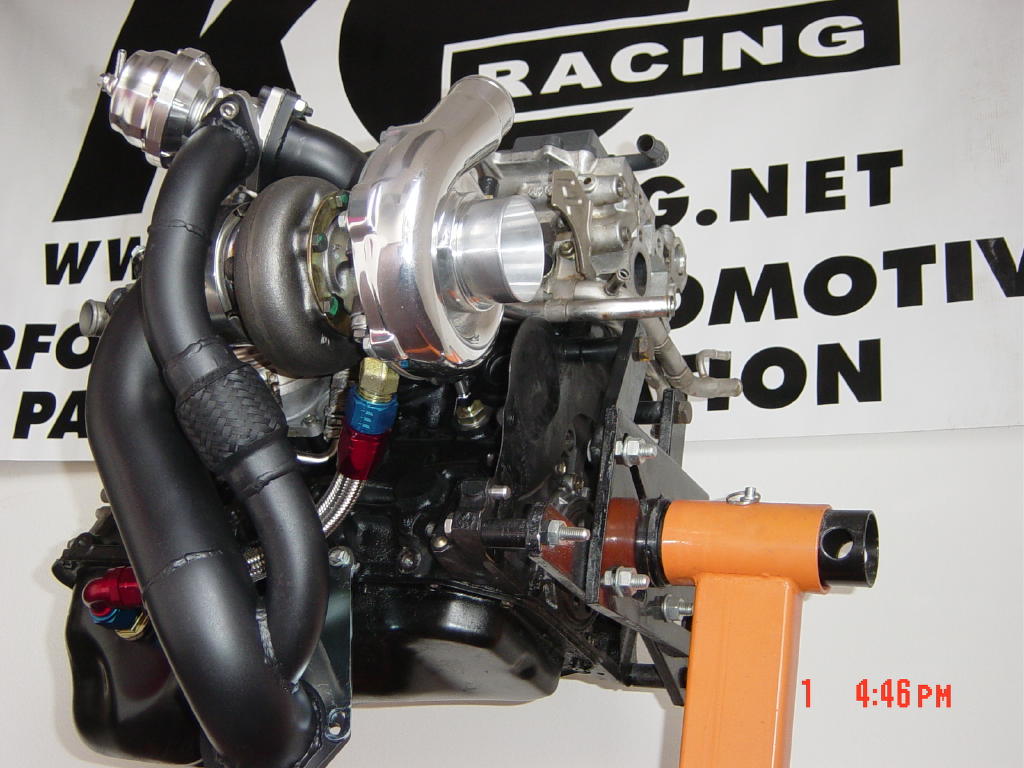

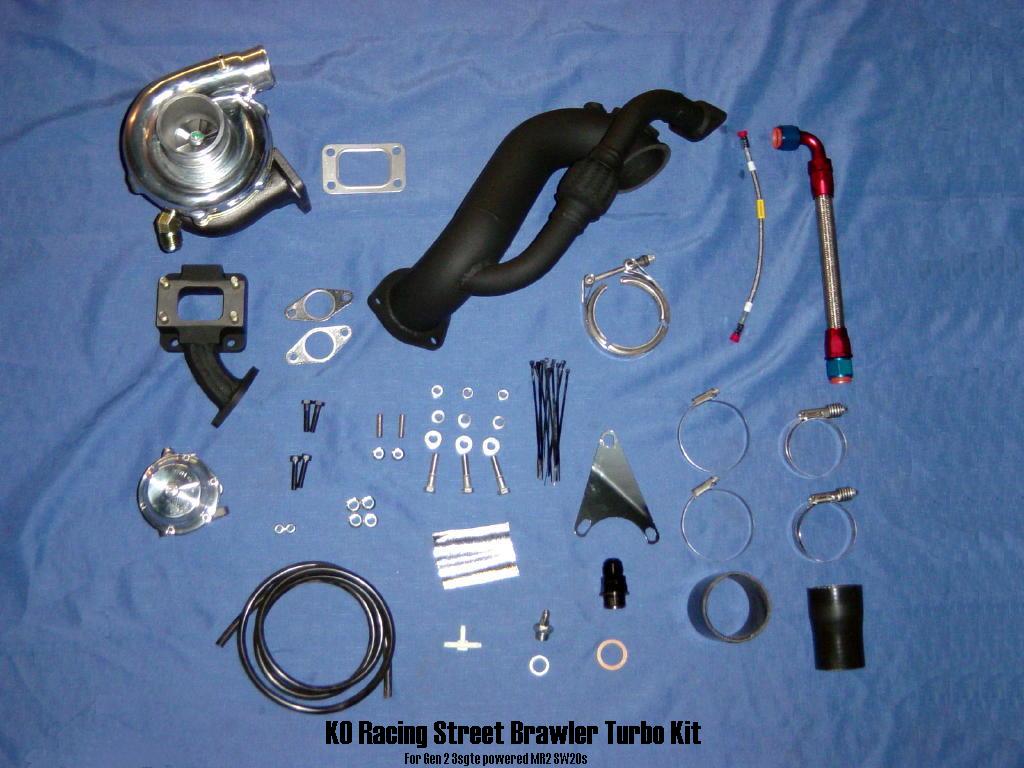

KO Racing "Street Brawler" Turbo Kit

***Note: We will NOT sell any part of this kit by itself, so please don't ask.***

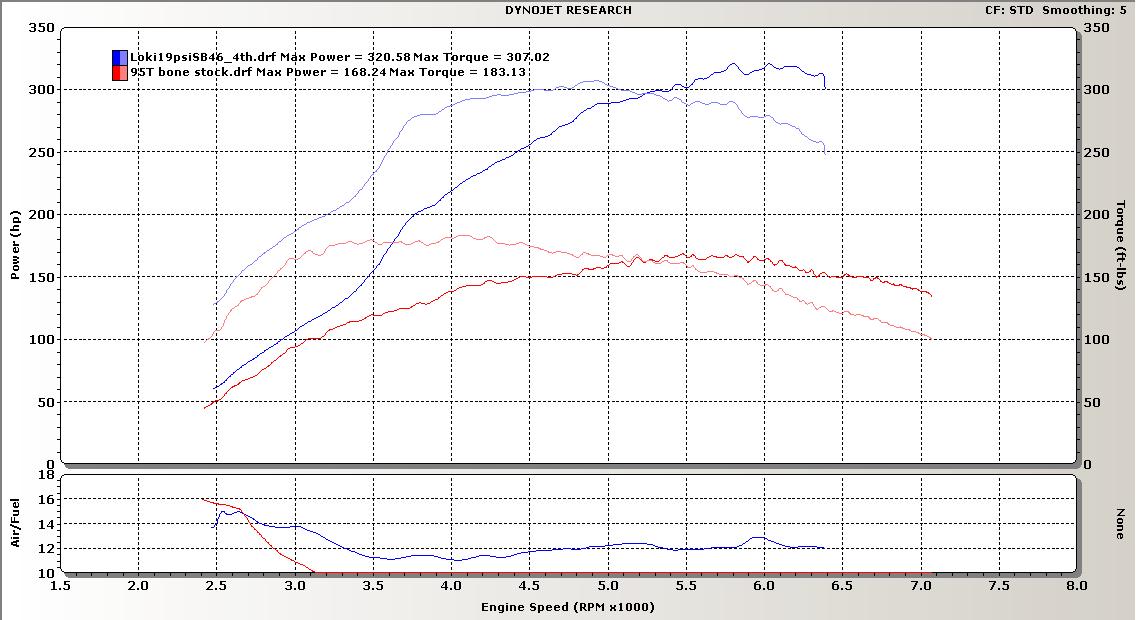

12/19/2004 Dynojet Results

.63A/R stage 3 turbine/TO4E-46 Compressor @ 19PSI vs. stock 95 Turbo .

List of test car's modifications Loki.

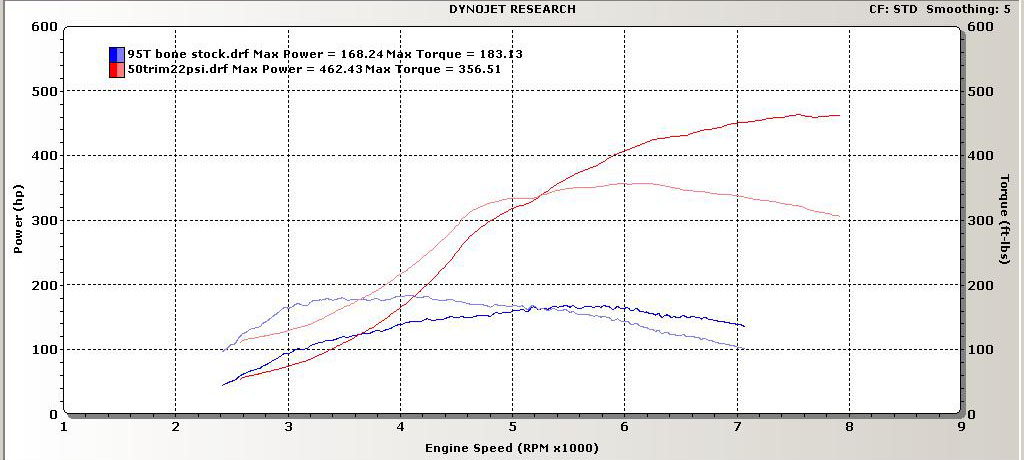

9/12/2004 Dynojet Results

.63A/R stage 3 turbine/TO4E-50 Compressor @ 22PSI (Race gas on a fully built. 2.2L stroker motor) vs. stock 95 Turbo .

$2190 each
Select Compressor Trim

The Street Brawler T3/T4 Turbo kit was developed exclusively for the Toyota 3SGTE Engine (will fit MR2 and Celica All-trac), to provide near to stock turbo spool, while allowing 300+ rear wheel horsepower to be achieved at 20PSI or less. (with supporting modifications) The kit includes a manifold adapter, which is CNC machined from a solid steel billet and bolts to the stock manifold to retain OEM reliability. The other components include a full 3" mandrel bend down pipe with integrated 1.75" diameter wastegate dump tube, with it's own flex section, a Tial 38mm external wastegate,and all lines, gaskets, and mounting hardware needed to install the kit. More pictures can be seen in the photo gallery.



What's included:

  • Full 3" downpipe with V band clamp and integrated 1.75 wastegate dump tube (with its own flex section)
  • Wideband O2 Port and Plug
  • Downpipe support bracket
  • Tial Sport 38mm external wastegate
  • CNC machined steel manifold adapter, with integral wastegate port/mount.
  • -3AN oil feed line
  • -12AN oil return line
  • Oil line adapter fittings for the block and oil pan
  • Heat shielding (for clutch slave lines)
  • Assorted hoses for connecting the wastegate to a manifold pressure source
  • Assorted hardware (nuts, bolts, washers, gaskets, zip ties, etc.)
  • Garrett T3/T4 .63A/R stage 3 turbine/TO4E-46 compressor
    Or
  • Garrett T3/T4 .63 A/R stage 3 turbine/TO4E-50 compressor
The adapter and down pipe are coated with the same 2000F ceramic thermal barrier coating that is on our CT26/CT20b down pipes.

*Note: This is not an emissions legal part.

See the installation instructions on the Technical Articles page


Full Sized Image
KO Racing "Gen 3 Street Brawler" Turbo Kit

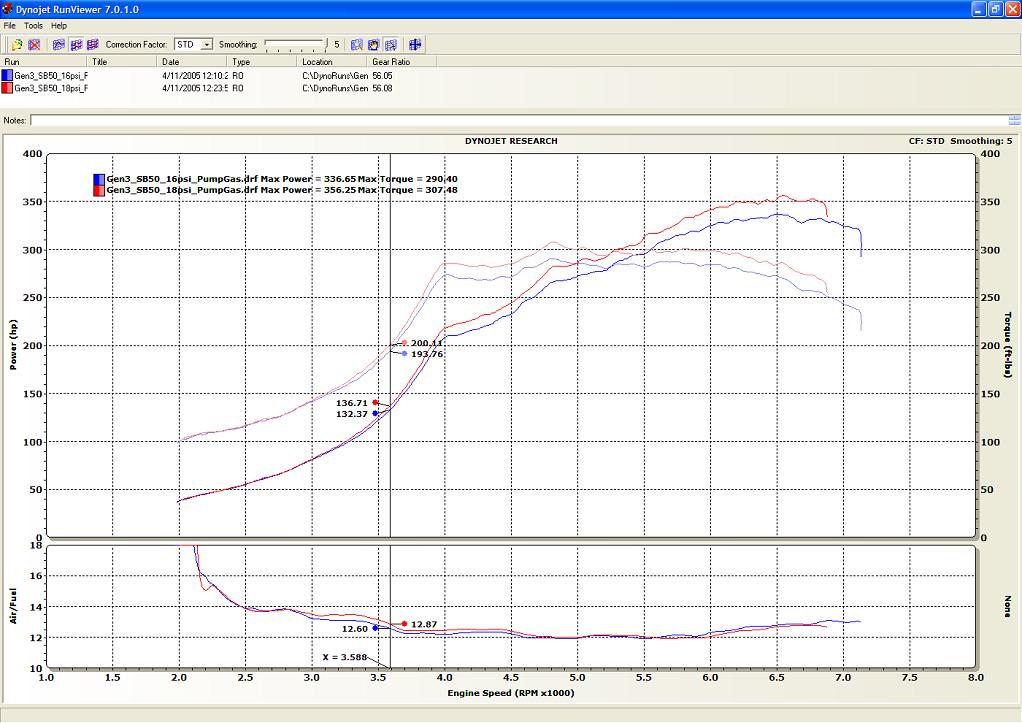

04/11/2005 Dyno Results 3rd Gen Street Brawler 50 trim turbo on pump gas at 16 and 18psi of boost..

$2190.00 each plus $50 shipping and handling to the lower 48 US states.
Select turbo trim


Full Sized Image


Full Sized Image

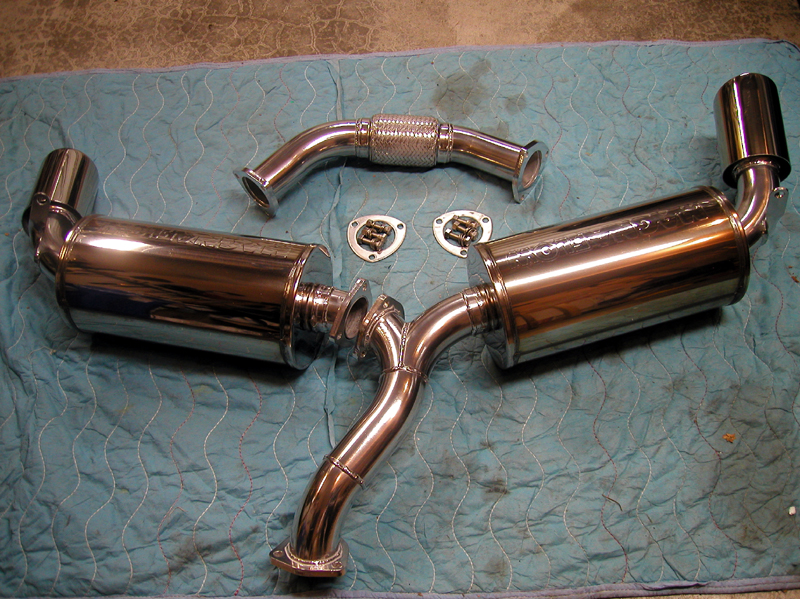

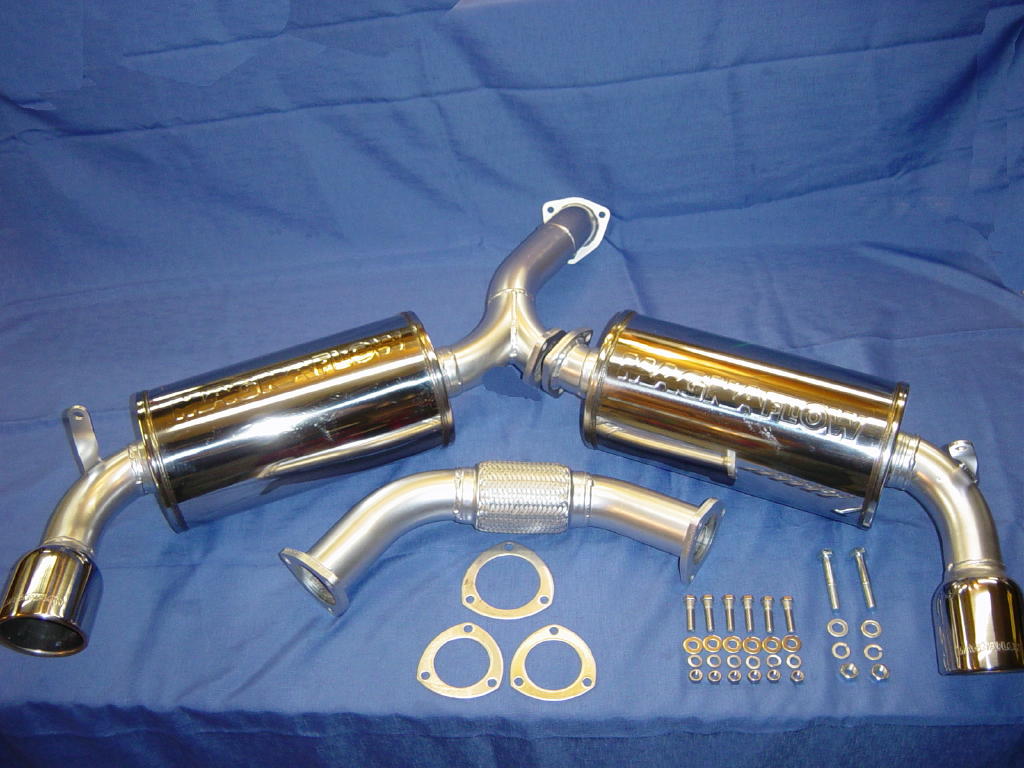

KO Racing "TKO" Exhaust System

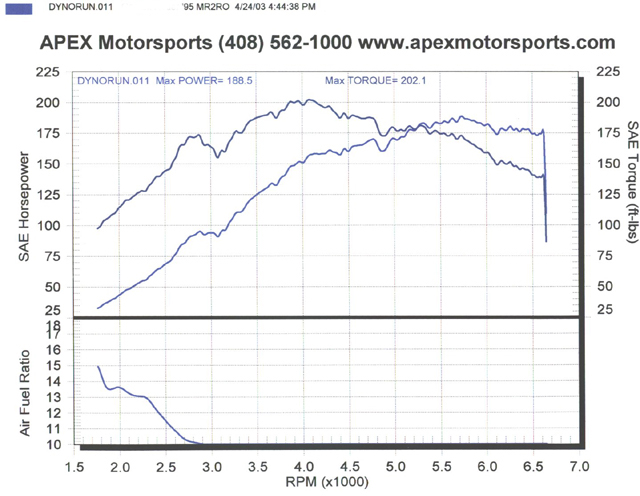

4/24/2003 Dyno Results 95T completely stock.
95T with the sole addition of the TKO 7" Exhaust
(Testing was performed by one of our customers, on his otherwise stock 95T, with backup runs.)

6/27/2002 Dyno Results from Matrix Engineering.

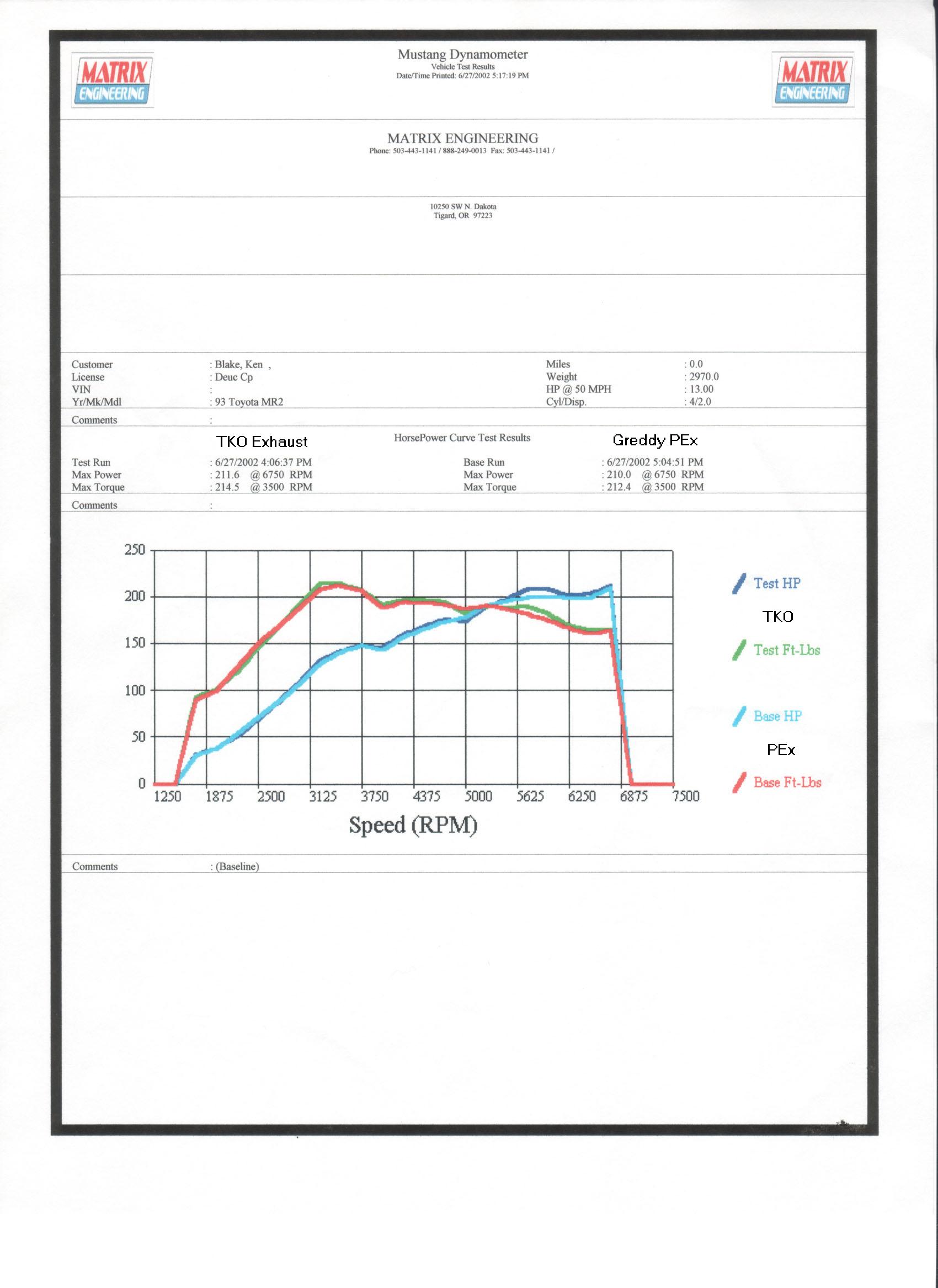

Dyno Comparison TKO vs. Greddy Power Extreme
(Test was performed with prototype TKO using 7" diameter mufflers.)

$650 each
Select Muffler Size
Optional Cermachrome Coating:
$300
Optional dual wall stainless steel tips:
$70


Full Sized Image

KO Racing 3" "TKO" Exhaust System, with 3" inch diameter into dual 2.5 inch for cars making 300+ rear wheel horsepower (includes dual wall stainless tips at no extra charge)

$800 each
Select Muffler Size

The TKO Exhaust System is the premier exhaust for MR2 Turbos, with the highest published dyno gains of any exhaust on an otherwise stock MR2 Turbo. The exhaust features 3/8" laser-cut flanges for good sealing, 2.5" diameter (63.5mm) mandrel bent 16 gage piping, MIG welded construction, and high temperature paint. The Exhaust utilizes dual 6" (louder), 7" (quieter), or 4" (you may want earplugs with this exhaust) diameter round stainless Magnaflow Mufflers and 4" rolled edge stainless angle cut tips. The exhaust has a deep tone that is actually quieter than the Greddy Power Extreme (TM) with the 7" mufflers, while having an aggressive sporty sound when you are done fooling around. All hardware and Percy's gaskets are included with the exhaust. More pictures can be seen in the photo gallery.

Specs:
34 lbs. (stock is 43)
3" into dual 2.5" mandrel bent aluminized pipe
dual 4" stainless double wall tips
dual stainless 4", 6" or 7" mufflers

*Note: Installation requires the removal of the triangular rubber dampener on the rear suspension cross member. This is not an emissions legal part.

Click Here to listen to the TKO with 6" mufflers start, idle and rev.
Click Here to listen to the TKO with 6" mufflers do a 3rd gear drive by.

Click Here to listen to the TKO with 7" mufflers rev.
Click Here to listen to the TKO with 7" mufflers do a drive by.

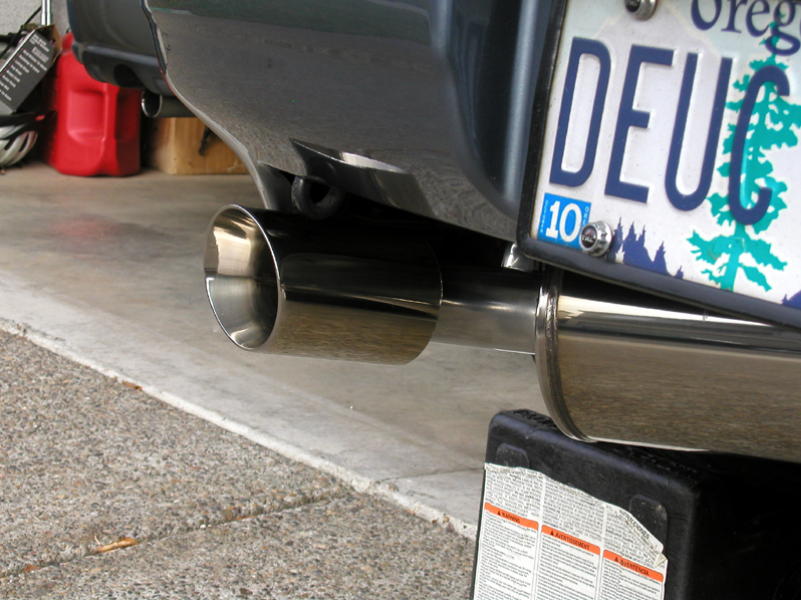

Click Here to see the optional double wall, stainless steel, polished edge 4 inch exhaust tips.

Click Here to see the optional "Cermachome coating on the exhaust piping, flanges, and welds.

*Note: This is not an emissions legal part.

See the installation instructions on the Technical Articles page.


Full Sized Image


Full Sized Image

KO Racing "NATKO" Exhaust System

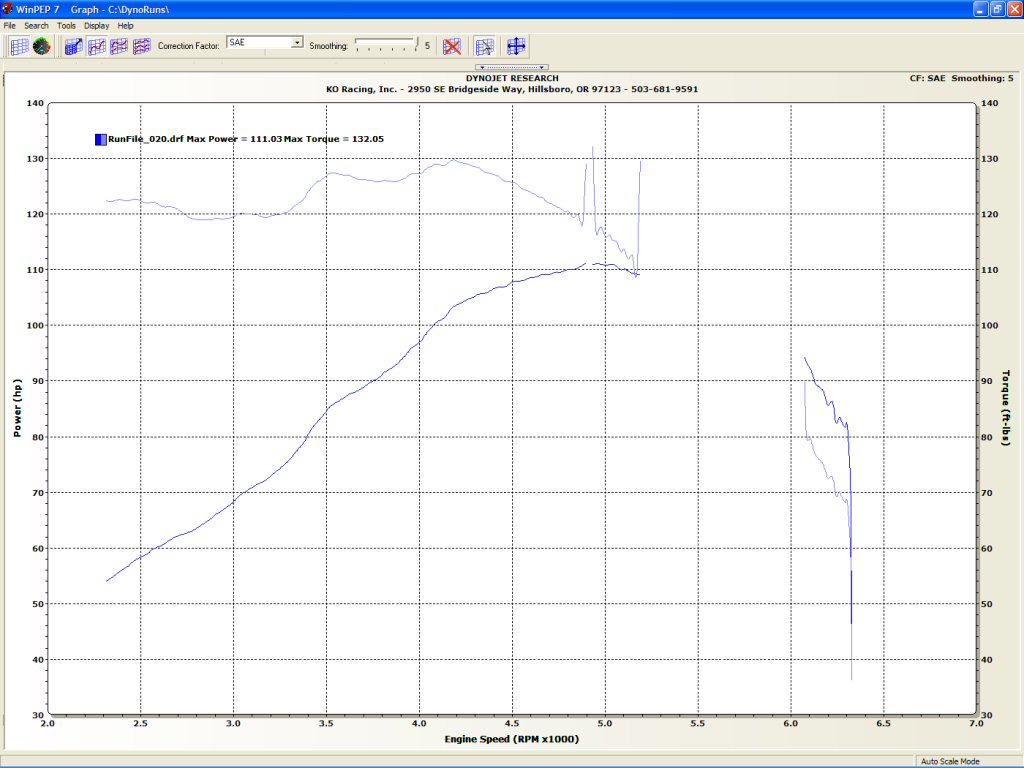

11/20/2004 Dyno Results

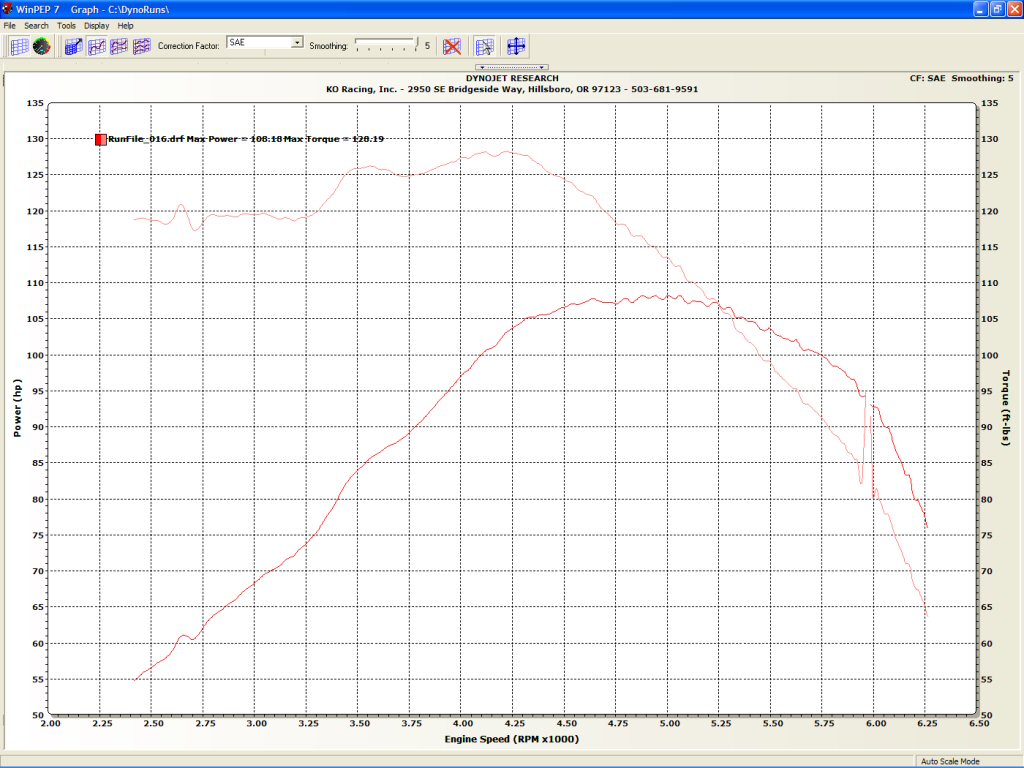

93NA with stock exhaust.

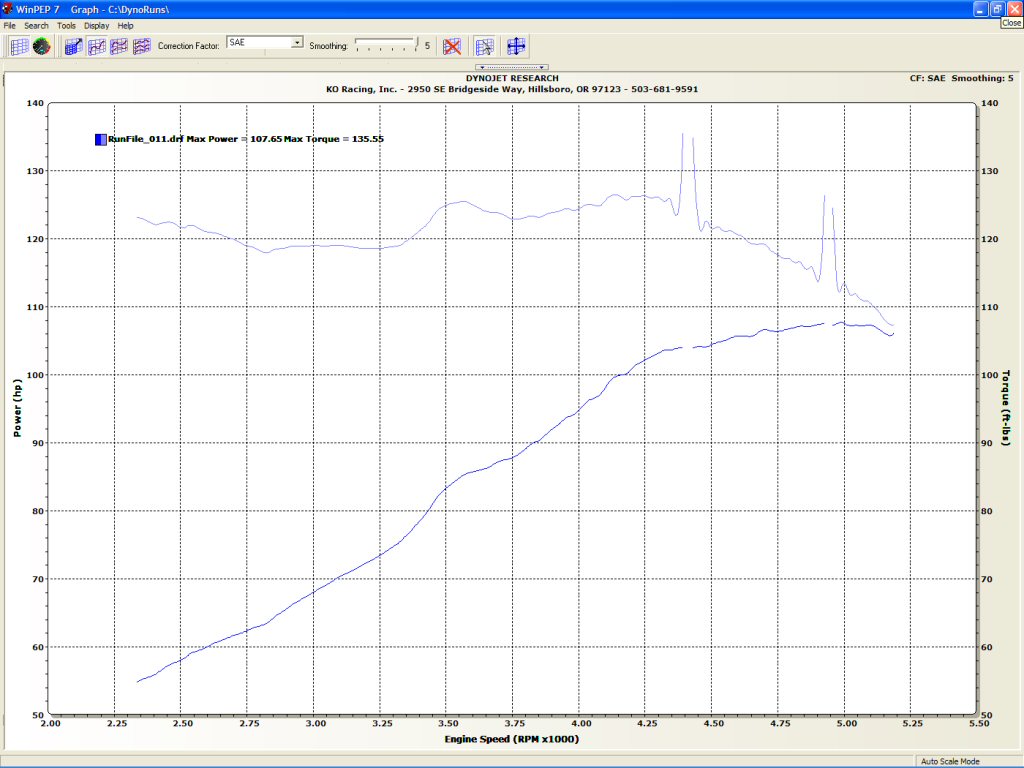

93NA with a Greddy SP Exhaust
93NA with NATKO Exhaust

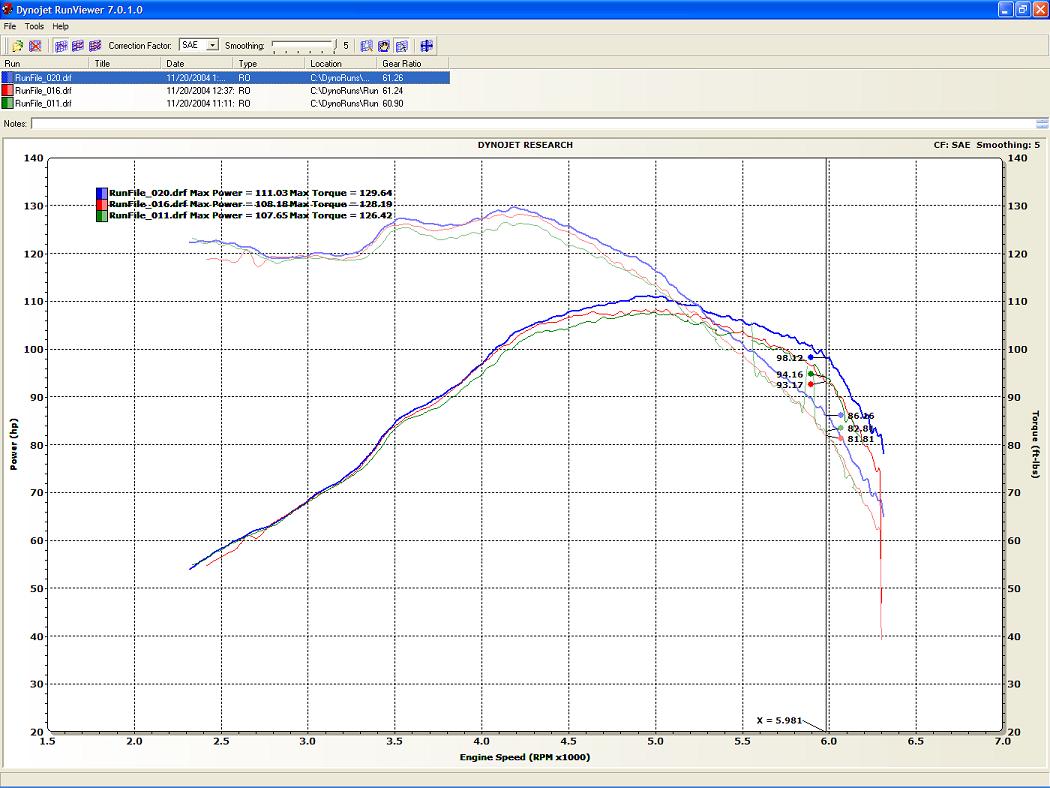

All Pulls Overlayed vs. RPM

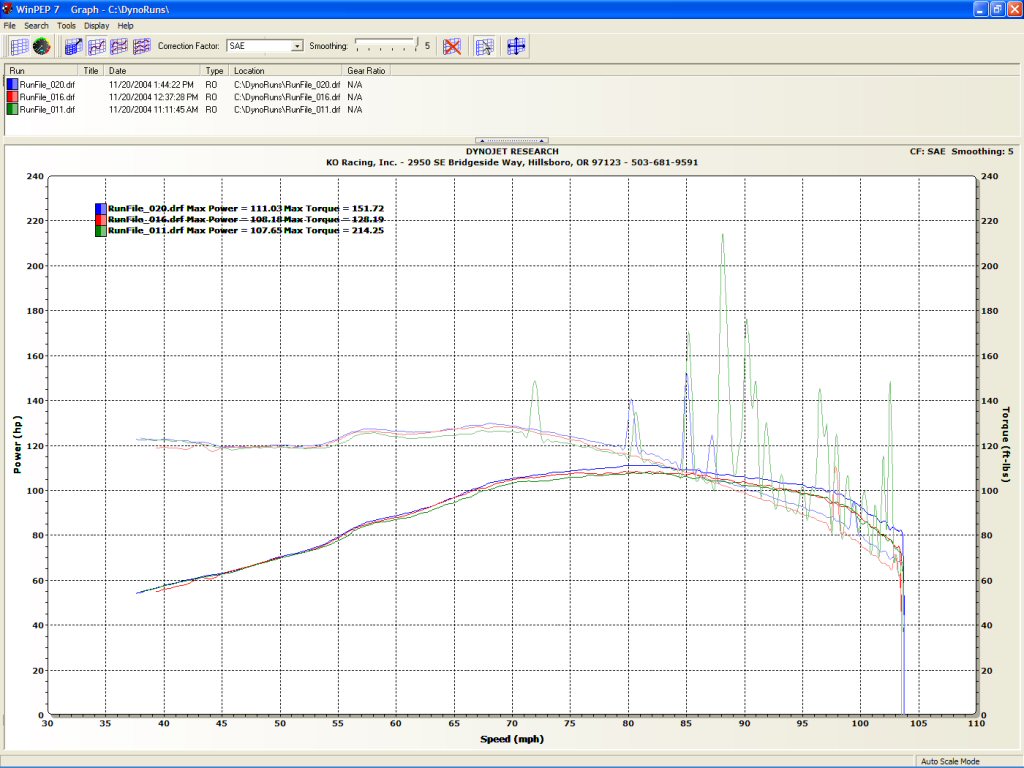

All Pulls Overlayed vs. Speed
(Testing was performed on one of our customers' cars, a 93NA, with an aftermarket intake and nology wires as the only additions to the exhaust systems tested. All exhaust systems were tested with backup runs.)

$650 each
Select Muffler Size

Optional Cermachrome Coating:
$300

Optional dual wall stainless steel tips:
$70

The NATKO Exhaust System is the premier exhaust for naturally aspirated mark II MR2s. The exhaust features 3/8" laser-cut flanges for good sealing, 2.5" diameter (63.5mm) mandrel bent 16 gage piping, MIG welded construction, and high temperature paint. The Exhaust utilizes dual 6" (louder), 7" (quieter), or 4" (you may want earplugs with this exhaust) diameter round stainless Magnaflow Mufflers and 4" rolled edge stainless angle cut tips. The exhaust has a deeper tone than stock, while having an aggressive sporty sound when you stab the throttle. All hardware and Percy's gaskets are included with the exhaust. More pictures can be seen in the photo gallery.

Specs:
34 lbs. (stock is 43)
2.5" into dual 2.5" mandrel bent aluminized pipe
dual 4" stainless tips
dual stainless 4", 6" or 7" mufflers

*Note: Installation requires the removal of the triangular rubber dampener on the rear suspension cross member. This is not an emissions legal part.

Click Here to see the optional double wall, stainless steel, polished edge 4 inch exhaust tips.

Click Here to see the optional "Cermachome coating on the exhaust piping, flanges, and welds.

*Note: This is not an emissions legal part.

See the installation instructions on the Technical Articles page.


Full Sized Image


Full Sized Image


Full Sized Image


Full Sized Image

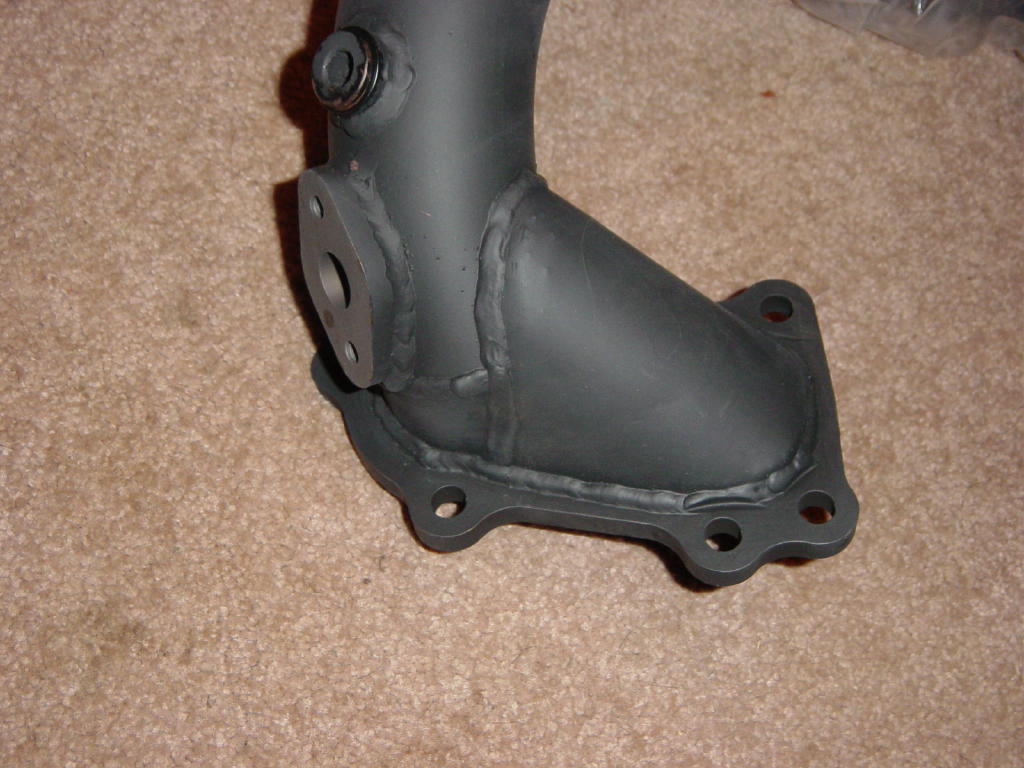

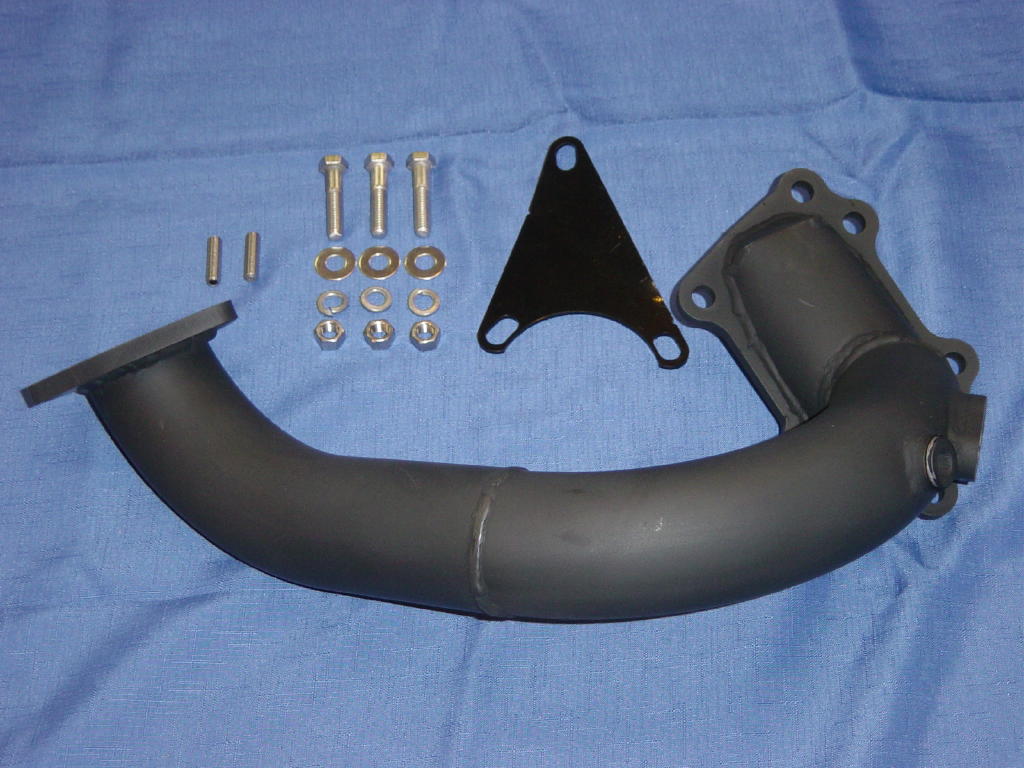

KO Racing Downpipe

2/2/2002 Dyno Results! from Matrix Engineering.

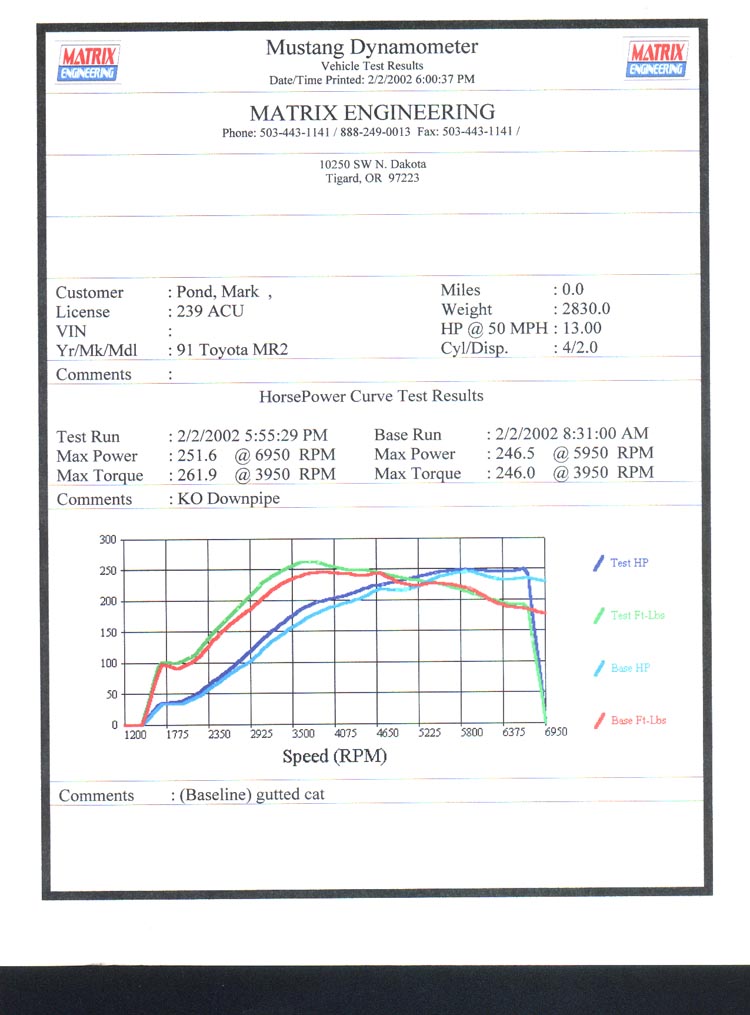

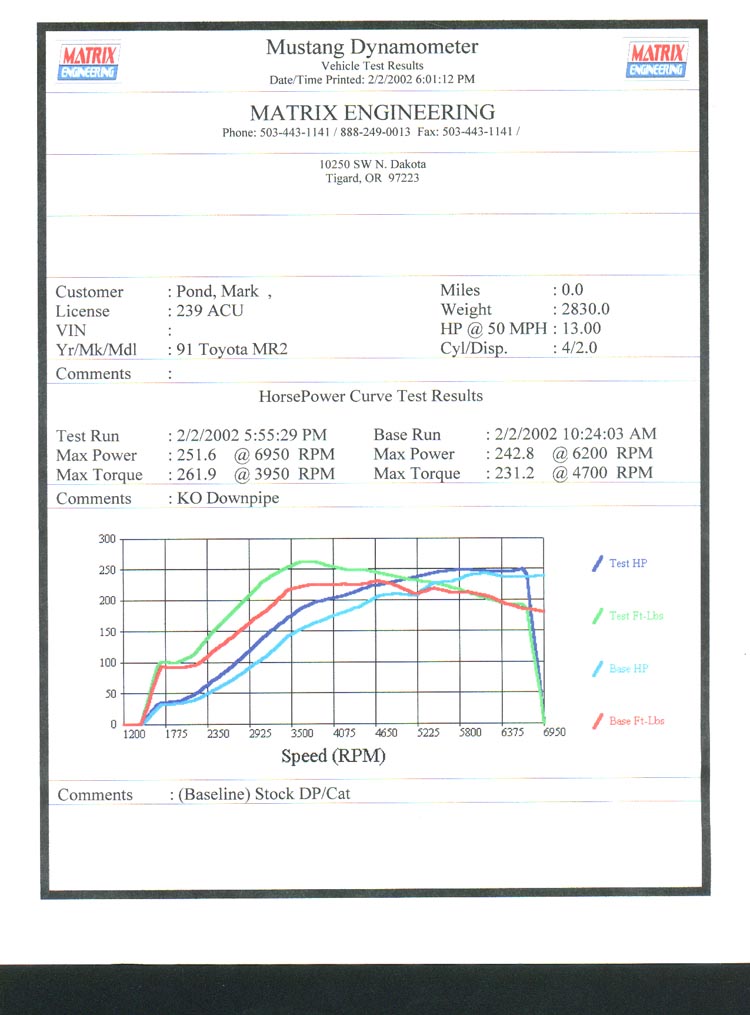

Dyno Comparison to stock gutted Cat
Dyno Comparison to Stock full cat

$285 with extra WB o2 port

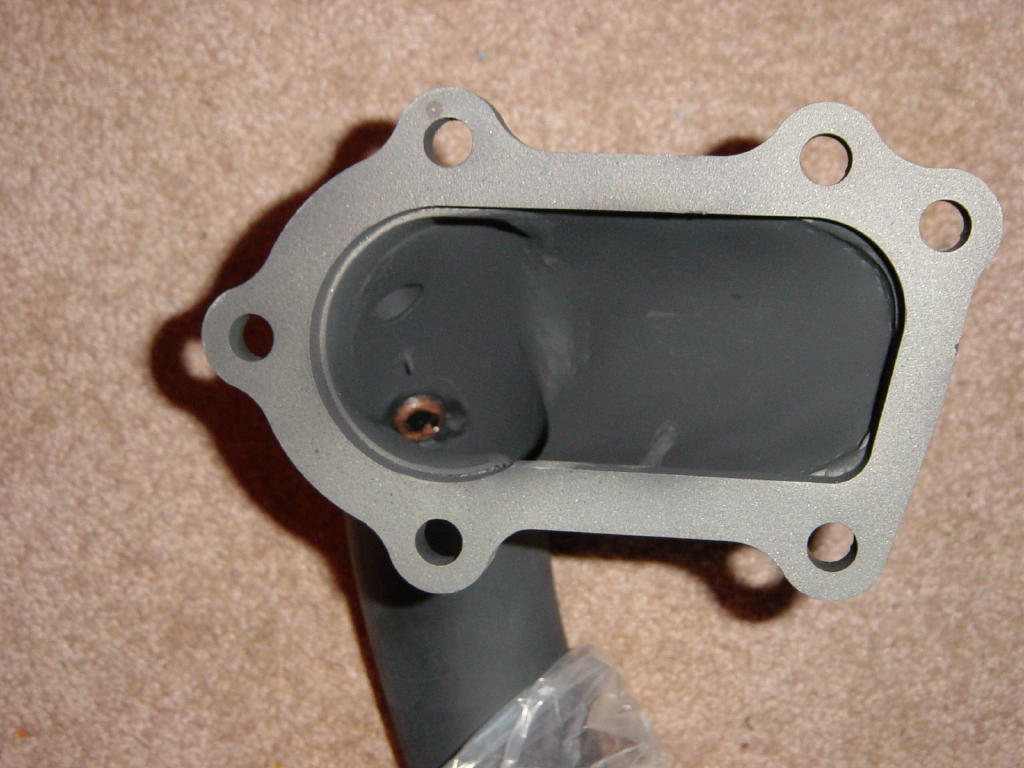

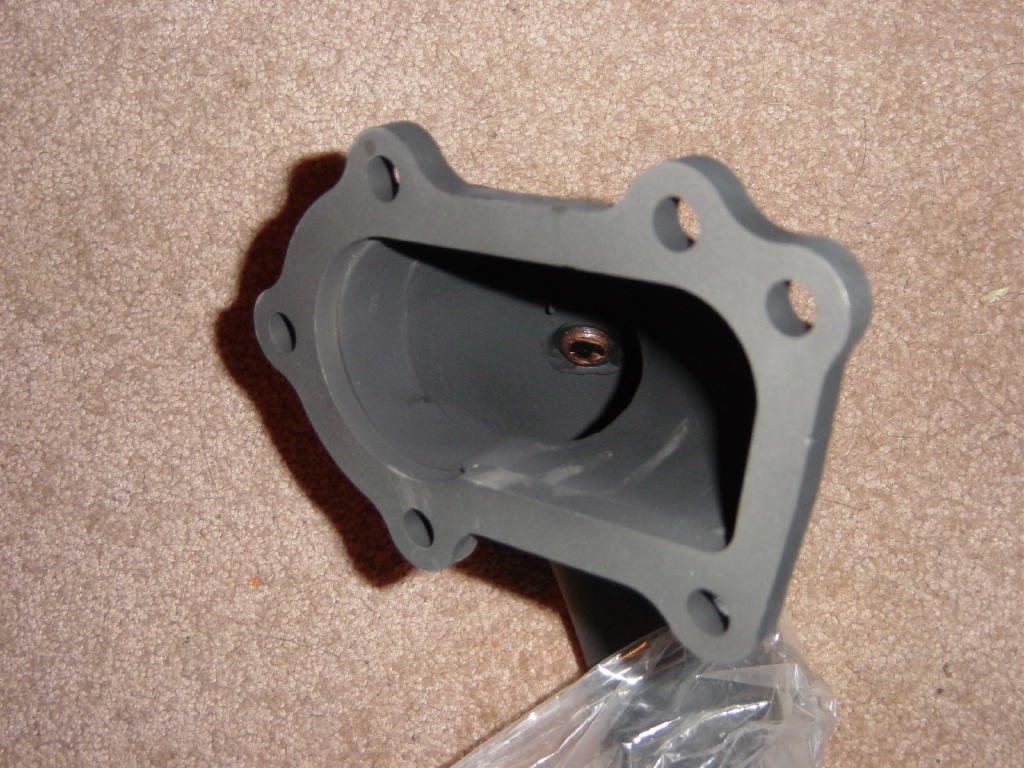

Downpipe purchase includes a support bracket. New redesigned wastegate vent for better boost control!

The KO Racing downpipe for MR2's is a must have item for owners with ct26's or ct20b's, and are interested in top performance. The downpipe features 3/8" laser-cut flanges for good sealing, 2.5" diameter (63.5mm) mandrel bent 16 gage piping, MIG welded construction, wastegate exhaust vent that allows full actuation of the wastegate, 2000 degree ceramic thermal barrier coating for corrosion resistance and thermal insulation from Finishline Coatings.

The KO Racing downpipe allows the use of the factory oxygen sensor and an extra O2 sensor port for putting a wide band O2 sensor into your exhaust for dyno tuning your fuel curve. The bung is for standard screw in type O2 sensors (M18x1.5), not the bolt on toyota type, and includes a plug. The downpipe is provided with new stainless hardware for the 3 bolt flange at the b-pipe connection, and new stainless studs for the (toyota) oxygen sensor port. The use of 2.5" pipe and large radius bends eliminates the losses in flow seen in larger pipe. This results in a quicker spoolup on your turbocharger and more power.

KO Racing recommends the use of a dead soft aluminum or copper reuseable gasket for the 3 bolt flange connection (like Percy's -- you need the 3" gasket).

*Note: this is not an emissions legal part. Use of the stock b-pipe may cause fitment issues between the exit of the downpipe, and the b-pipe flange.

See the installation instructions on the Technical Articles page.


Full Sized Image


Full Sized Image

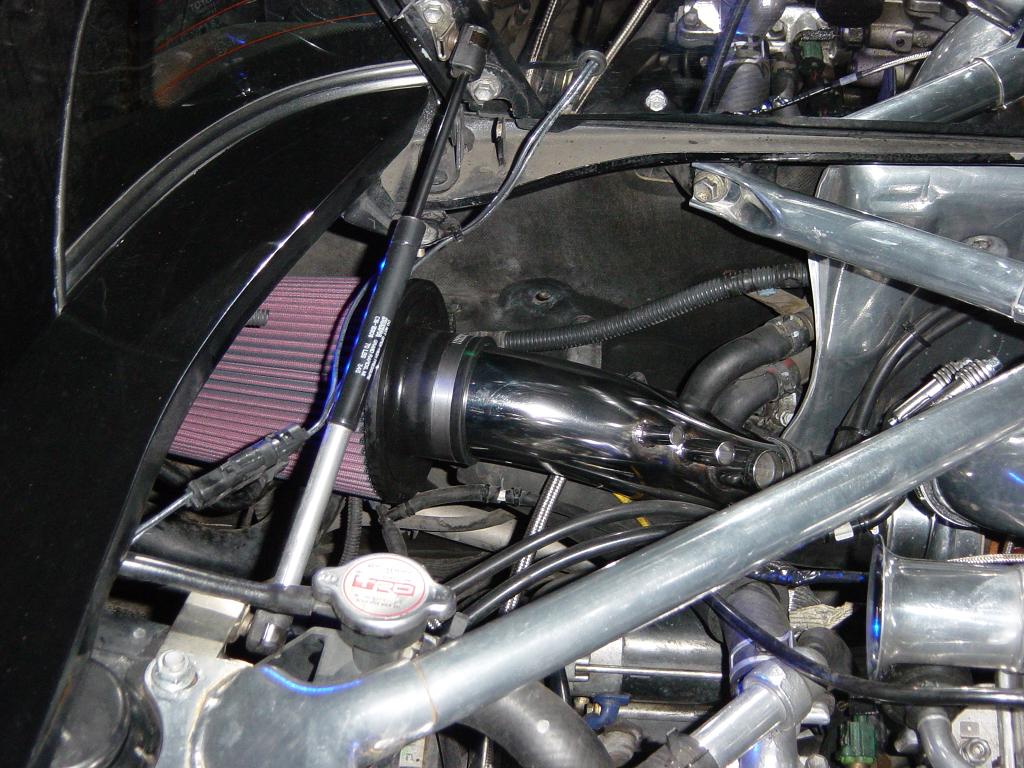

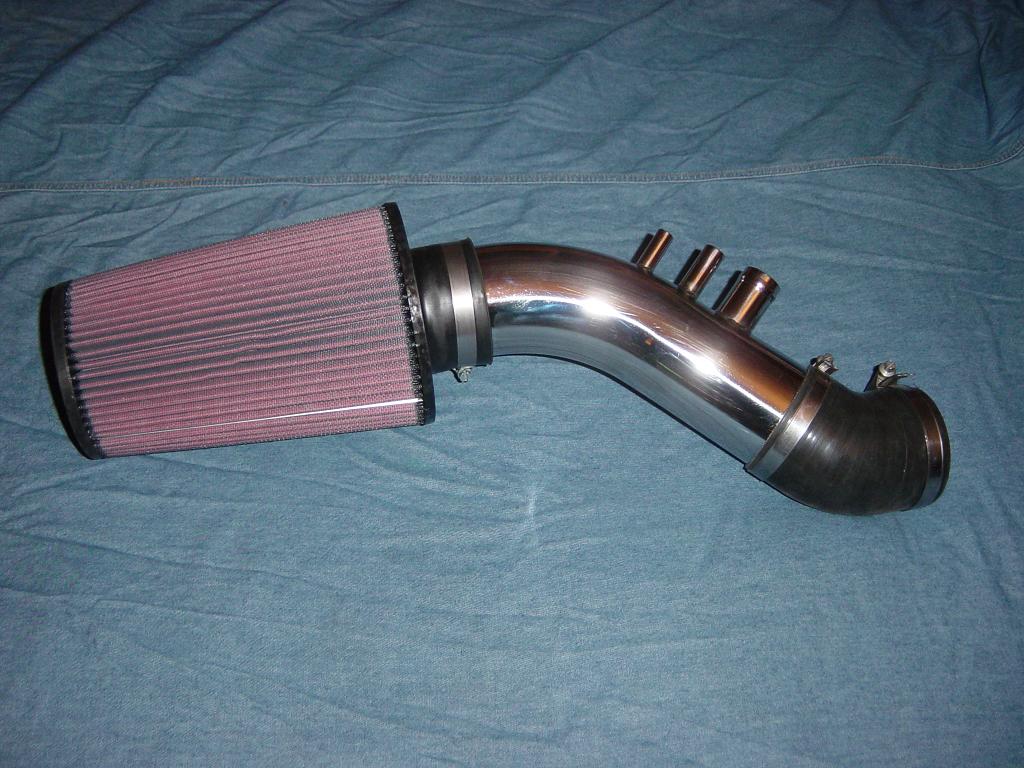

KO Racing Intake

$150.00 each.

This intake will allow full air flow into the Street Brawler turbo kit using a 9" long cone air filter, mandrel bent 3" tube and 45 degree silicone hose with clamps. For use when converting from Mass Air to Speed Density. Select from 1, 2, or 3 ports welded into the intake. The intake pictured at left has all 3 auxiliary ports. The pipe is 304SS and fully polished.

Shipping on the Air Intake is $20 to the lower 48 states.


Full Sized Image


Full Sized Image

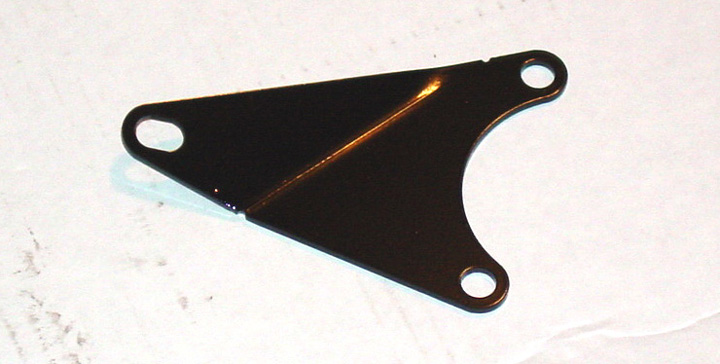

Downpipe Support Bracket

$22 each

This bracket will help eliminate failure of downpipes due to cracking. By eliminating the motion of the end of the downpipe, the stress is transferred to the engine block rather than the welds of the downpipe. The bracket is laser cut from 1/8" thick (0.125") steel and is then bent and coated.

*Note: There is no need to order this part if you purchase a KO Racing downpipe, it is included with your purchase.

See the installation instructions on the Technical Articles Page.


Full Sized Image

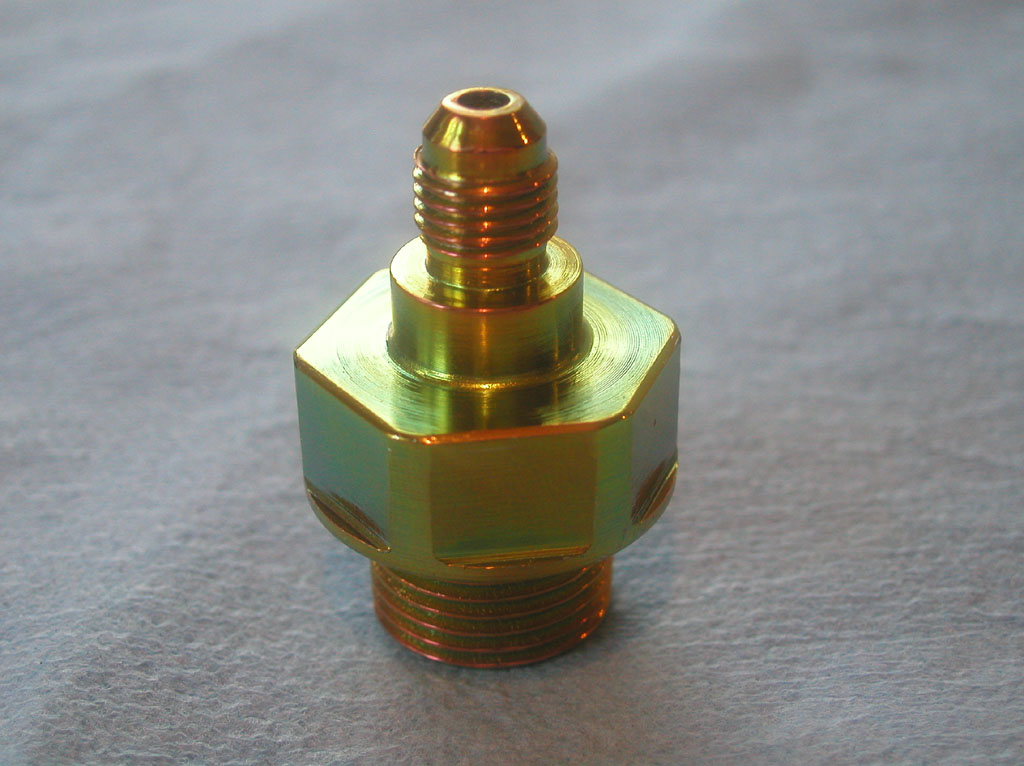

KO Racing Oil Feed Adapter

***Note:If you are purchasing a Street Brawler kit, this fitting is included. ***

Building your own turbo kit? This adapter converts the stock oil feed to a -3AN fitting. Dichromate plated to prevent corrosion.

Oil Feed Adapter= $20.00


Full Sized Image

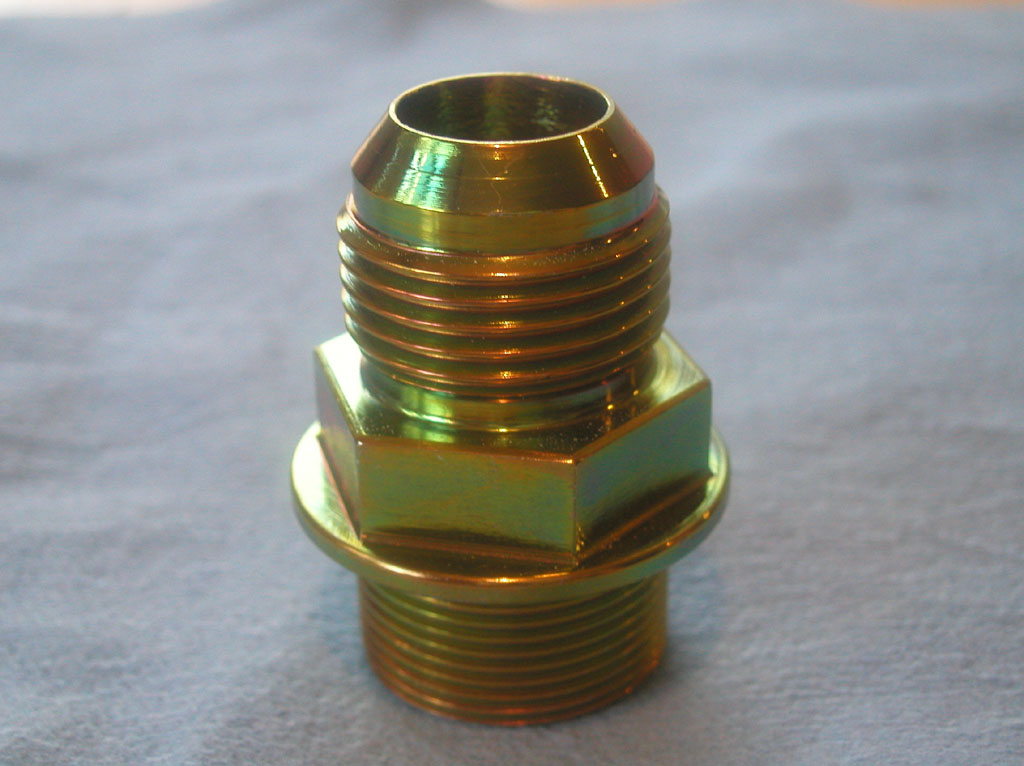

KO Racing Oil Return Adapter

***Note:If you are purchasing a Street Brawler kit, this fitting is included. ***

Building your own turbo kit? This adapter converts from -12AN to the stock oil pan. Dichromate plated to prevent corrosion.

Oil Return Adapter= $20.00


Full Sized Image

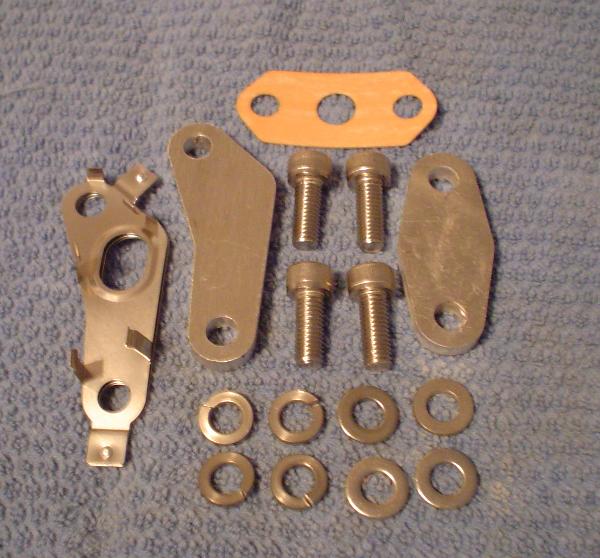

KO Racing EGR Block Off Plates



These plates allow the removal of the EGR system from the 3sgte in MR2 and All-trac applications. These plates are made from 1/4" aluminum and include the plates, gaskets, and necessary hardware to install them.

EGR Block Off Plates = $45.00

Standard delivery is approximately 4-6 weeks from receipt of payment to ship date. We ship via FedEx Ground, or USPS Parcel Post, depending on the destination.

KO Racing's shopping cart is powered by Paypal. We also accept checks, cashier's checks, or money orders made payable to KO Racing Inc. For information on non-paypal payments, please send an email to the address below. DO NOT send cash in the mail. Shipping Charges are calculated at a percentage of the sale price. This percentage has been figured by the amount of shipping materials and actual shipping fees required to ship a product. The shipping charges are for within the United States only. Please add International Shipping if you are ordering from Canada

All KO Racing parts are sold with a satisfaction guarantee. That means, we guarantee your parts will be free of defects or errors in workmanship. If it is not, just ship it back in the original container and we will refund your money (less a 15% restocking fee), or exchange it at no charge. For all other inquiries, contact sales@koracing.net.

Legal: What you do to your car is your responsibility, and not KO Racing's. Kris Osheim and KO Racing cannot be held legally liable for any adverse effect caused by installing and running KO Racing parts on your car. Agreement to purchase a KO Racing product constitutes your agreement with this policy. Downpipes are not legal for use on emissions controlled vehicles.

Cancellation of an order already in process is subject to a 15% restocking fee as well as any fees incurred from processing the order (credit card fees, Paypal fees, etc.). Cancellation of a turbo kit order may require up to a 50% restocking fee if all parts are already purchased or in process.
