Flex Fuel Sensor Continental Type
KORacing Products » Toyota MR2 MK2 » Fueling & Injection

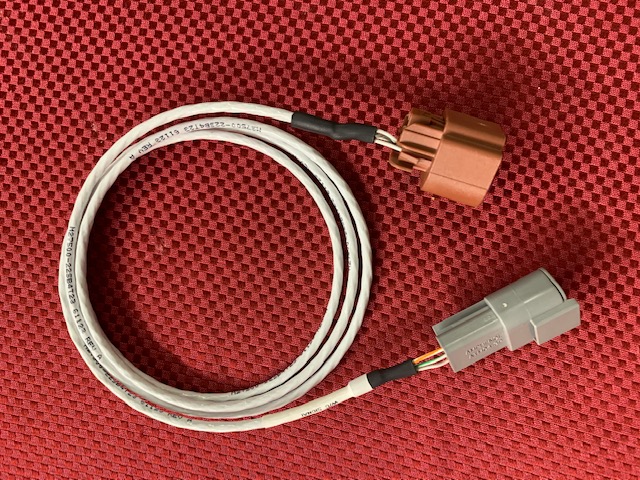

48" harness to DTM 3 pin receptacle

3 wire flex fuel sensor. For use in determining the ethanol content of the fuel when used in conjunction with an ethanol content meter or EMS system (like the Link ECU) that can directly read the frequency output of the sensor and to provide the ethanol percentage of the fuel in the system.

Tuning a vehicle with E85 can be a tricky proposition as most E85 pumps say right on the label "minimum E70". If the fuel at the pump varies in ethanol content by 15% or more, your air fuel ratio can change by half a point! Take the guesswork and testing out of the system by tuning your car with the use of an ethanol content sensor and the Link G4+ or G4x ecu, or similar. Tune 2 maps at 2 different ethanol content levels and get seamless operation with linear interpolation between those tuned maps, and beyond.

Optional: Add AN adapter fittings to the GM style fuel line couplings.
Optional: Add a connector or pigtail.

NOTE: Recommended to install in the return line of the fuel system to not impede flow to the rail.

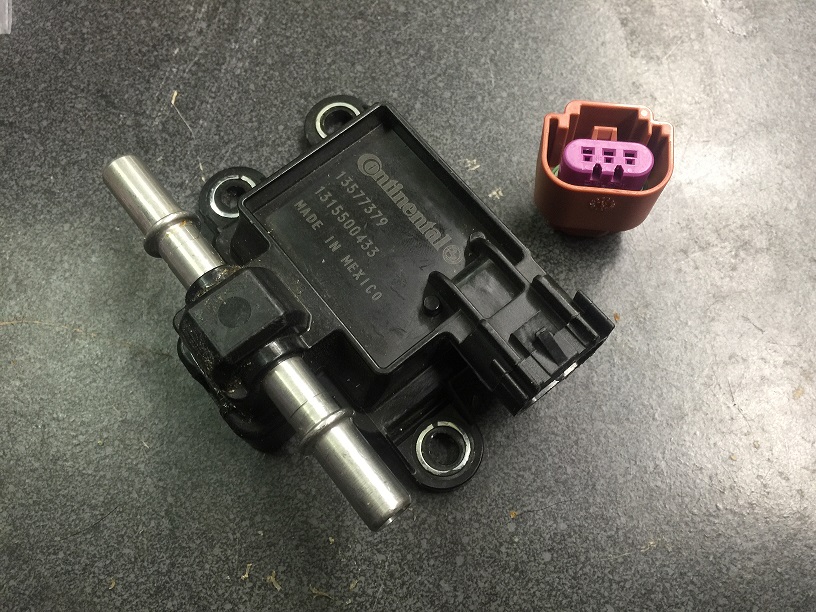

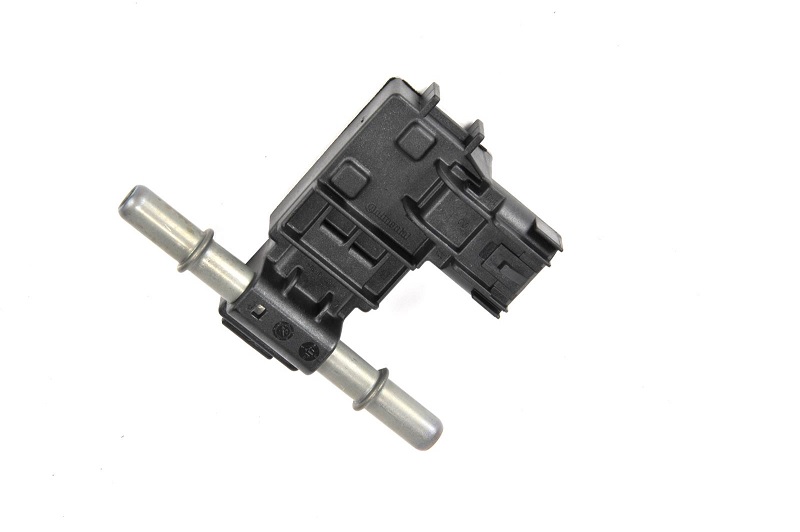

NOTE: The product you receive will be the same as one of the two pictured. They perform the same and electrically use the same connectors and pinout.

NOTE: Other harness options available.


$120.00 each
Include AN Adapters:
Electrical Connection:
