Fuel Pressure Regulator Radium Engeering MPR
KORacing Products » Toyota MR2 MK2 » Fueling & Injection
Green Top Option

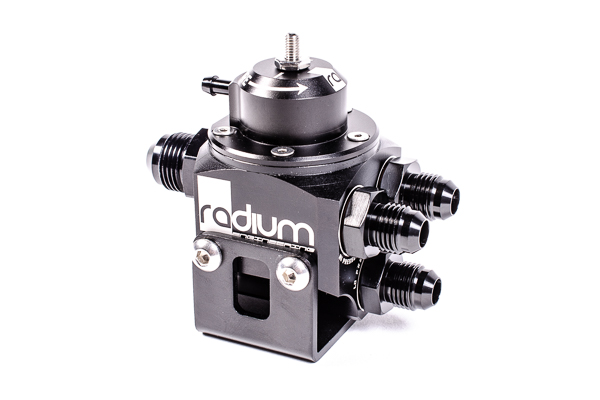

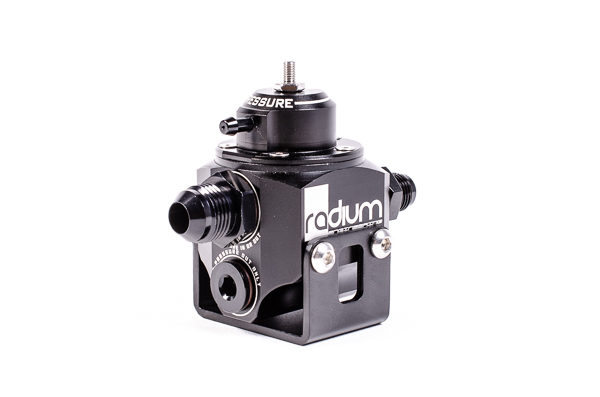

The Multi Port Regulator (MPR) is the ultimate solution for simple or complex high-flow fuel systems. It's unique port configuration makes it ideal for combining several fuel pumps into a single feed line or vice versa. However, it can also be used for single pump applications by simply plugging the unused ports.

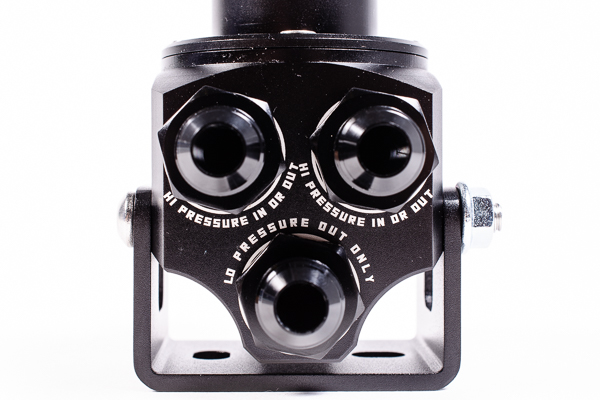

The MPR can be plumbed many different ways to suit most any installation; traditional flow-through or dead-end systems. Because of this flexibility, it is also perfect for Radium fuel systems by eliminating the need for an extra "Y" fitting. The lower 2 opposing return ports are unique in that they flow parallel with the pressure ports eliminating the need for elbow fittings. Either lower port can be used for the return line, just plug the one not used (a plug is included).

This regulator can be floor mounted. Alternatively, wall mounting can be accomplished by not using the included mounting bracket and simply mounting using the holes that pass through the body, or by mounting the regulator sideways.

Two interchangeable orifices are included to match the amount of fuel bypassed for the application. Furthermore, this added precision will resist diaphragm flutter and optimize pressure stability. See the installation instructions for more details. The 1:1 vacuum reference high flow design has been tested to regulate over 1,400 liters per hour (see MORE DETAILS tab). Furthermore, with the addition of interchangeable return orifices, the regulator is a good match for stock street cars or highly modified drag cars! It is compatible with all gasoline and alcohol blends of fuel including E85. Fuel pressure is dialed in using the preload set screw on top.

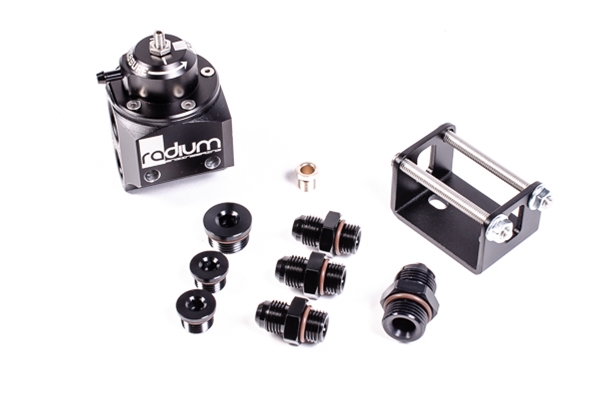

    INCLUDED
  • Multi-Port Regulator
  • Mounting bracket with hardware
  • Interchangeable return orifices
  • 6AN ORB plug (x2)
  • 8AN ORB plug (x1)
  • 6AN male adapter (x3)
  • 8AN male adapter (x1)

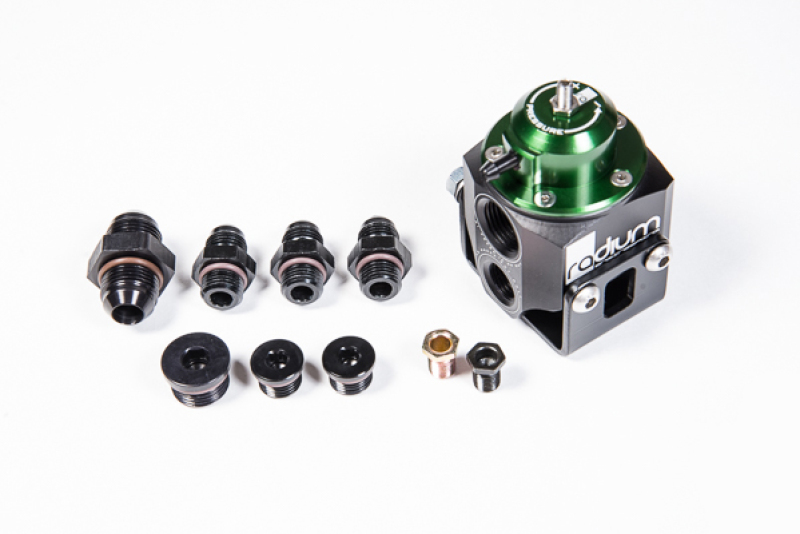

Top can be had in black anodized or green anodized. Base, Bracket, and fittings are all black with either option.
$190.00 each
Select Top Color:
