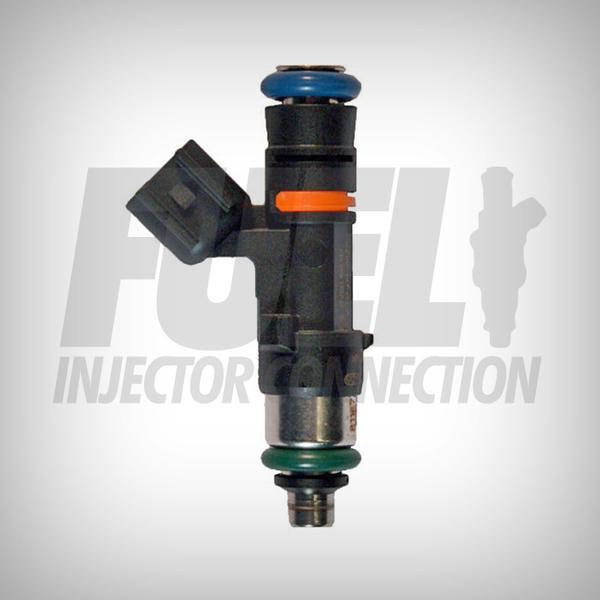

Top Feed Fuel Injector by Fuel Injector Connection
KORacing Products » Toyota MR2 MK2 » Fueling & Injection

Flow-matched, fuel injectors can be custom fit to almost any application (please select from drop-down menu).

• Supplied with all required o-rings, seals and adapters to properly fit your specific engine application.

Flow Ratings are at 43.5psi static fuel rail pressure.

Complete static and dynamic flow information with each set.

Plus correct injector latency, full injector data supplied for all gm vehicles in either hp tuners or efi live format.

Price is per injector.

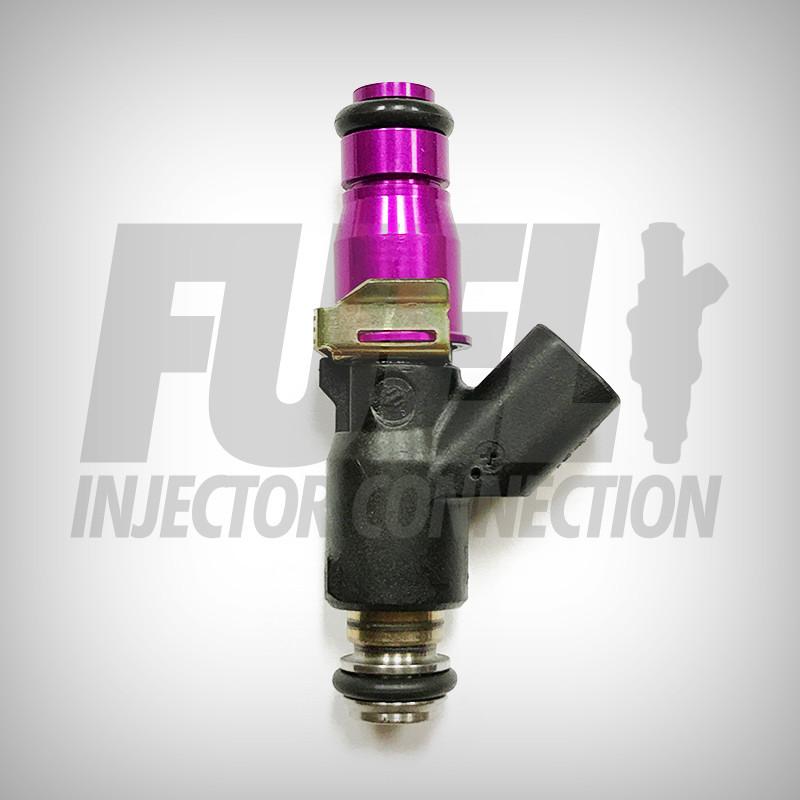

Select Plug adapter if desired. Most of these injectors have EV6/EV14 style connectors on them. The 2200 injectors have Denso connectors with the opposite alignment features to OEM on the 3SGTE. The 1300, 1700, and 2600cc injectors may have EV1 style connections.

HP estimates are approximate per injector for gasoline. Mulitply by 4 for 4 injectors, 8 for 8 injectors, etc. For E85 reduce numbers by 35% (multiply by .65).

Injector length 60mm, with 14mm top and bottom O-rings is for use with aftermarket fuel rails we sell on this site. Gen4/5 3SGTE can use the 11mm top, and denso fitment bottom injectors for a direct drop in installation (with appropriate wire adapter).

Injecotr length 60mm with 11mm top, and Denso bottom fitment work for 2RZ/3RZ applications. Other applications available by special request.

Note: Not compatible with fuels containing MTBE (except the new 1050 and 1450 "eXt" Extended tip injectors). See Injector Dynamics Injectors for other MTBE compatible offerings.


$65.00 each
Injector Length/O-Ring Style:
Select Injector Size:
Select Injector Plug Adapter:
