KO Racing High Performance Intercooler Kit
KORacing Products » Toyota MR2 MK2 » Intercooler / BOV

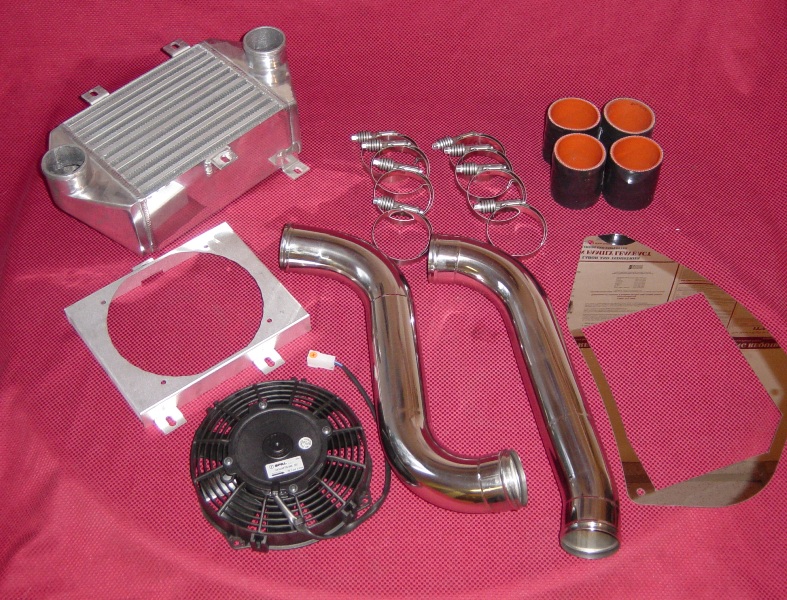

Bar and plate constructed intercooler core (similar to XS Power) with KO Racing pipes, hoses, clamps, spal fan, fan shroud, and recirculation shield. The use of this intercooler kit will greatly improve flow to the engine over the stock intercooler. This intercooler core has been dyno proven to flow better even than the Greddy core it was designed after. Upgrading the intercooler doesn't ususally increase power by itself, but will greatly improve the recovery rate and decrease the likelihood of heat soaking, and can improve the efficiency of the intake track when used in conjunction with other upgrades like larger turbochargers.

The pipes are heavy duty 16 gage 2.5" stainless steel pipes fully polished and TIG welded together by KO Racing with large beads rolled in the end to prevent blowing them off under boost. The clamps used are constant tension fully lined worm drive clamps made from stainless steel as well. These heavy duty clamps evenly clamps around their entire circumference and the spring packs on the adjustment screws maintain that tension through all temperature and pressure extremes. The fan is a Spal(TM) 7.5" electric fan; one of the best performing fan manufacturers in the market under real world conditions (others claim higher performance at no load -- but a fan never operates under no load).

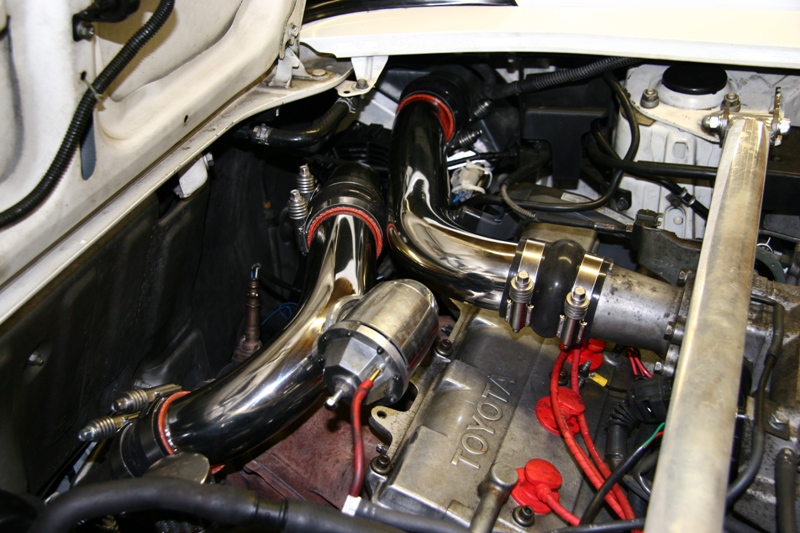

The way these pipes are routed allows the use of the widely popular TRD strut tower brace, but does require the bracket holding the factory hot pipe to the cylinder head to be removed. The image above of this kit installed in the car shows a KO Racing hot pipe installed, but it is not included with the kit standard. If you would like the hot pipe as well, it is listed elsewhere in this section of our online catalog. The fitment is better with the KO Racing hot pipe, and ideally that is what should be installed with this kit.

*Note: You will need to wire the fan to your stock wiring as the plug won't match. Blue is positive, black is negative on the provided fan.

*NOTE: These are made to order. The standard lead time is 3-5 weeks to fabricate and polish the plumbing.


$570.00 each
Hose Color:
Select Turbo Hot Pipe Hose to IC pipe Hose:
Select Hoses for IC Core Inlet and Outlet:
Select Hose for IC Pipe to Throttle Body:
Select Intercooler Source::
Select Finish:
