KO Racing Intercooler Pipes for Greddy style IC
KORacing Products » Toyota MR2 MK2 » Induction / Intercooler / BOV

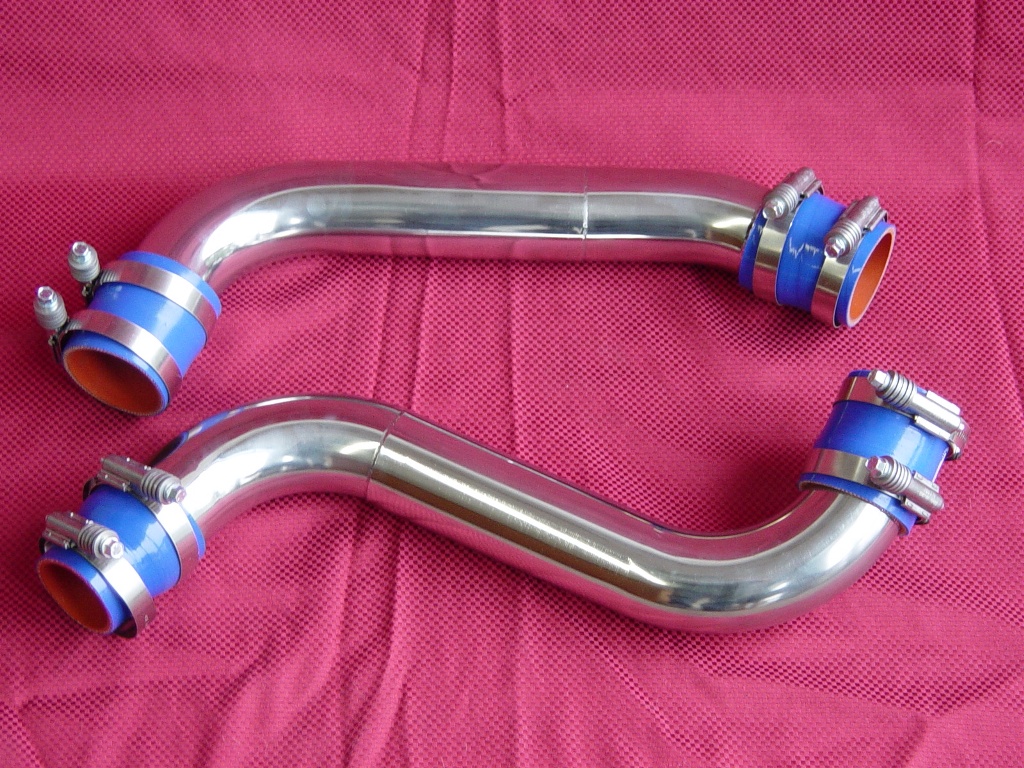

2.5" polished 304 SS intercooler pipes. Full beads are rolled into the ends of each pipe to ensure there will be no blowing off of the hoses under elevated levels of boost (tested at over 30psi). These high quality TIG welded IC pipes will clear the lowest profile strut tower braces available for the MR2 (TRD). The design of these pipes eliminates 2 extra connections when used in lieu of the pipes provided with either the XS Power IC, or the Greddy IC kits. The hoses provided are straight hoses, 3 or 4 ply reinforced silicone couplers. The clamps provided standard are constant tension hose clamps with high torque capacity (in excess of 13 ft-lbs.).

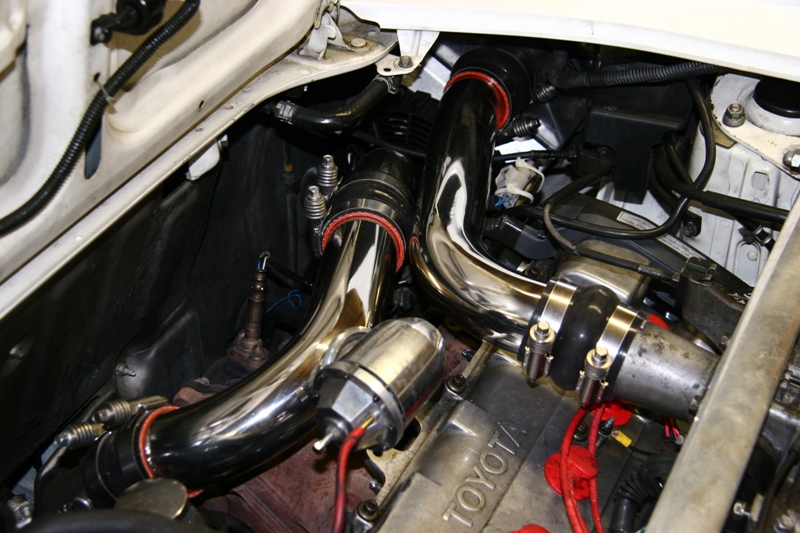

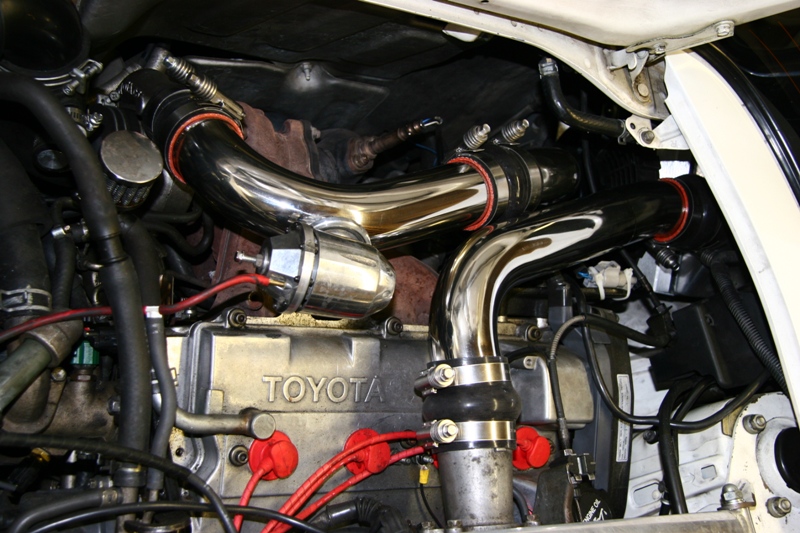

*Note: The standard set of pipes does not include the turbo "hot" pipe shown in the above pics. See turbo out "hot pipe" for more details. Fitment of these pipes is better with the KO Racing hot pipe than the stock one, though it will fit with the stock hot pipe.

These are made to order. 2-3 weeks to build

*NOTE: ALL CERAMIC COATINGS WILL ADD ADDITIONAL TIME, UP TO 3 WEEKS.


$370.00 per set
Hose Color:
Select Turbo Hot Pipe Hose to IC pipe Hose:
Select Hoses for IC Core Inlet and Outlet:
Select Hose for IC Pipe to Throttle Body:
Select Finish::
