KO Racing Phenolic TVIS Eliminator
KORacing Products » Toyota MR2 MK2 » Engine Components

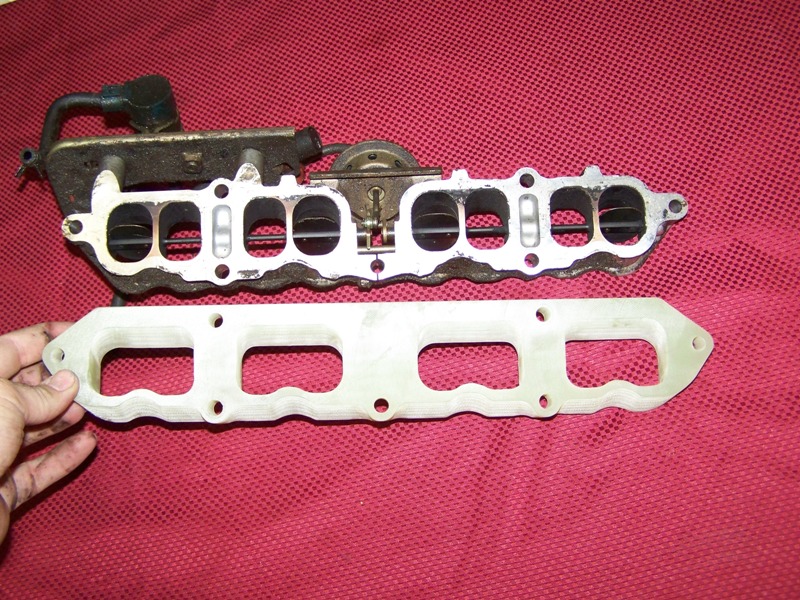

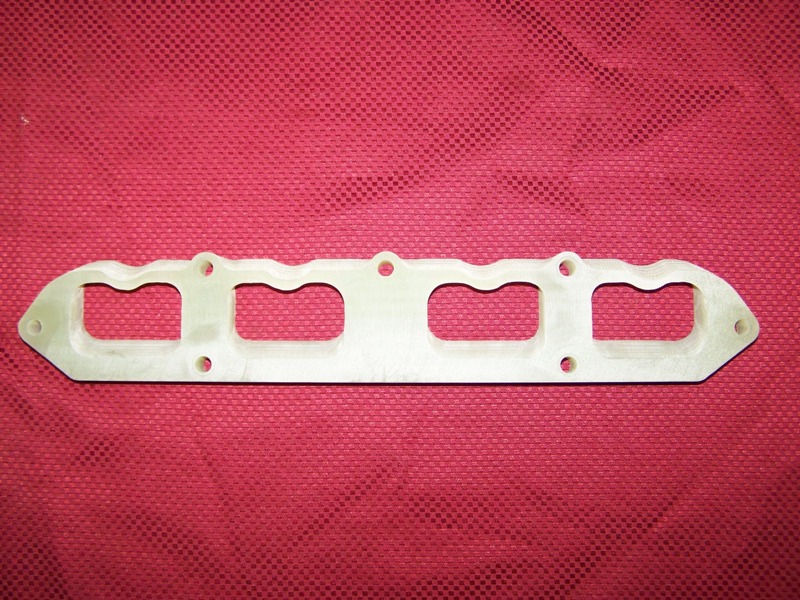

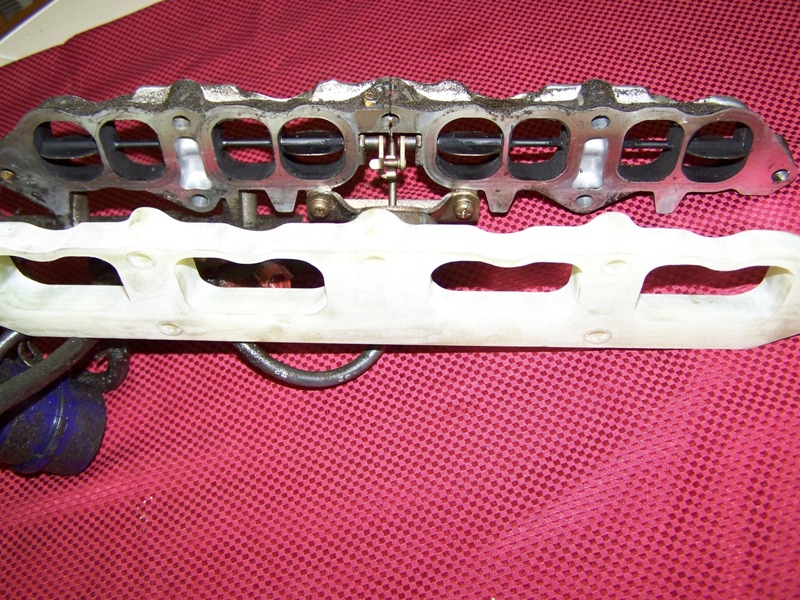

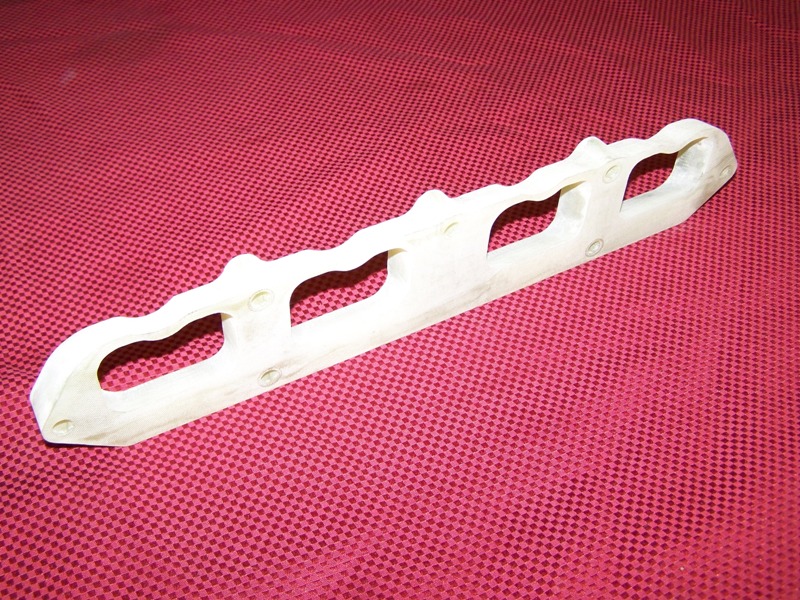

The factory Toyota variable intake system (TVIS) is comprised of a plate sandwiched between the intake manifold and the cylinder head. When upgrading the flow through the engine, it can be removed and replaced by a fully open eliminator plate removing the restriction of the factory butterfly system. KO Racing brings you an eliminator plate CNC machined from high strength Garolite (aka Phenolic). KO Racing can machine this for you from a few different materials depending on your requirements.
    Materials:

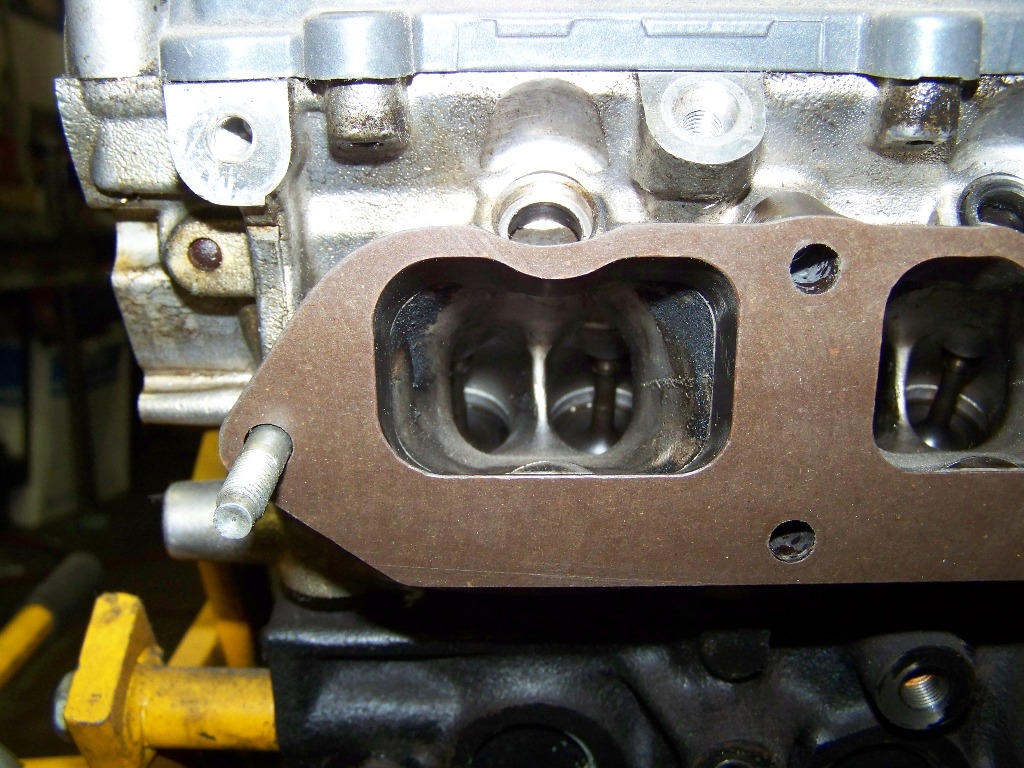

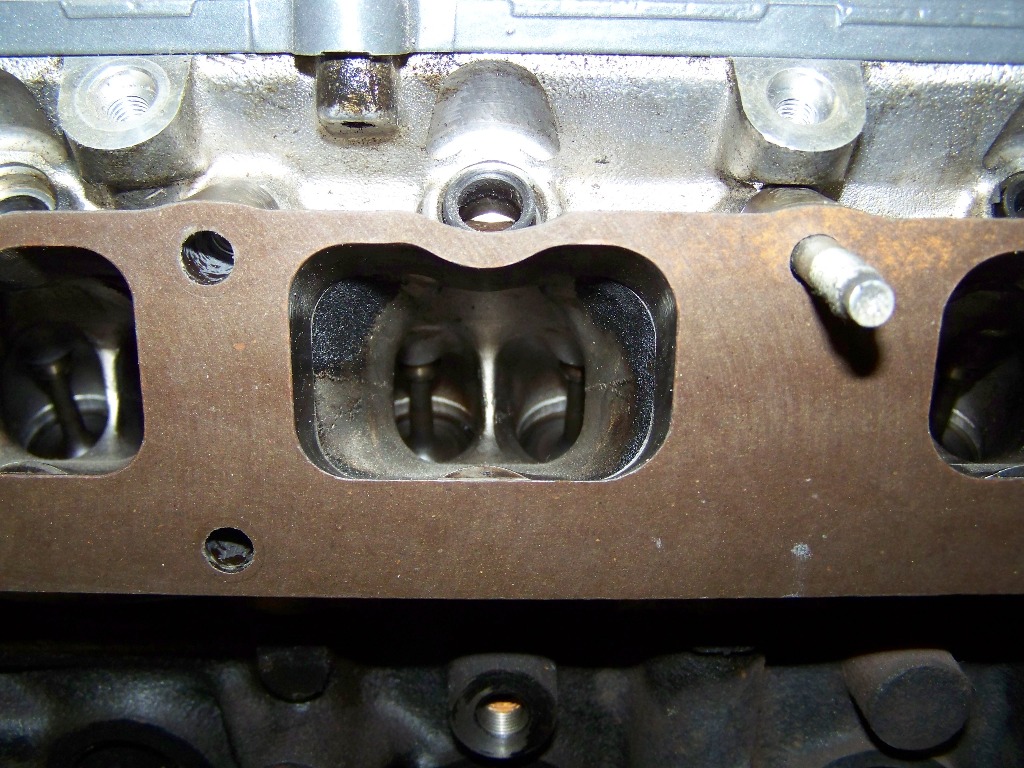

  • Grade XX Garolite: Like all Garolite, Grade XX is lighter than metals but dense and strong. It's a paper-based laminate with a phenolic resin binder with low water absorption. 13,000-16,000 psi tensile strength. Brown in Color. Operating temperature range: 0 deg F to 266 deg F. Water absorption: 1.3%. Rockwell hardness: M105.

  • Grade G10/FR4 Garolite: A glass-cloth laminate with epoxy resin binder, this material is the flame-retardant version of standard G-10 Garolite. It offers excellent strength and low water absorption. 50,000 psi tensile strength. Green in color (pictured above). Operating temperature range: -20 deg F to 284 deg F. Water absorption: 0.15%. Rockwell hardness: M115.

*NOTE: This is for use on Gen 2 3SGTE engines originally available on ST185 Celicas (1990-1993) and SW20 MR2s (1990-1993 outside US, and 1991-1995 within the US).

*NOTE: We accept inquiries for machining this out of different materials also -- please contact us with your request.


$155.00 each
Select Material:
