KO Racing Oil FIlter Relocation Bracket Gen2 3SGTE
KORacing Products » Toyota MR2 MK2 » Engine Components
Filter Mount

This bracket is for use when relocating the oil filter on the 3SGTE engine (particularly Gen2) or 5SFE block engines. It provides a place to mount a larger oil filter and allows the oil changes to all be done from under the car. This bracket mounts in place of the AC compressor so it is not compatible with the AC system on the car.

    Includes:
  • 1/4" Aluminum Bracket for mounting a bottom facing oil filter to original AC compressor location
  • Optionally: Filter mount that bolts to the above bracket and allows a filter to spin on with two 1/2"NPT inlet and outlet holes. Can use a Wix 51515 or similar filter to increase filter capacity significantly. Customer will need to provide their own mounting hardware (3 bolts and nuts) for this option.

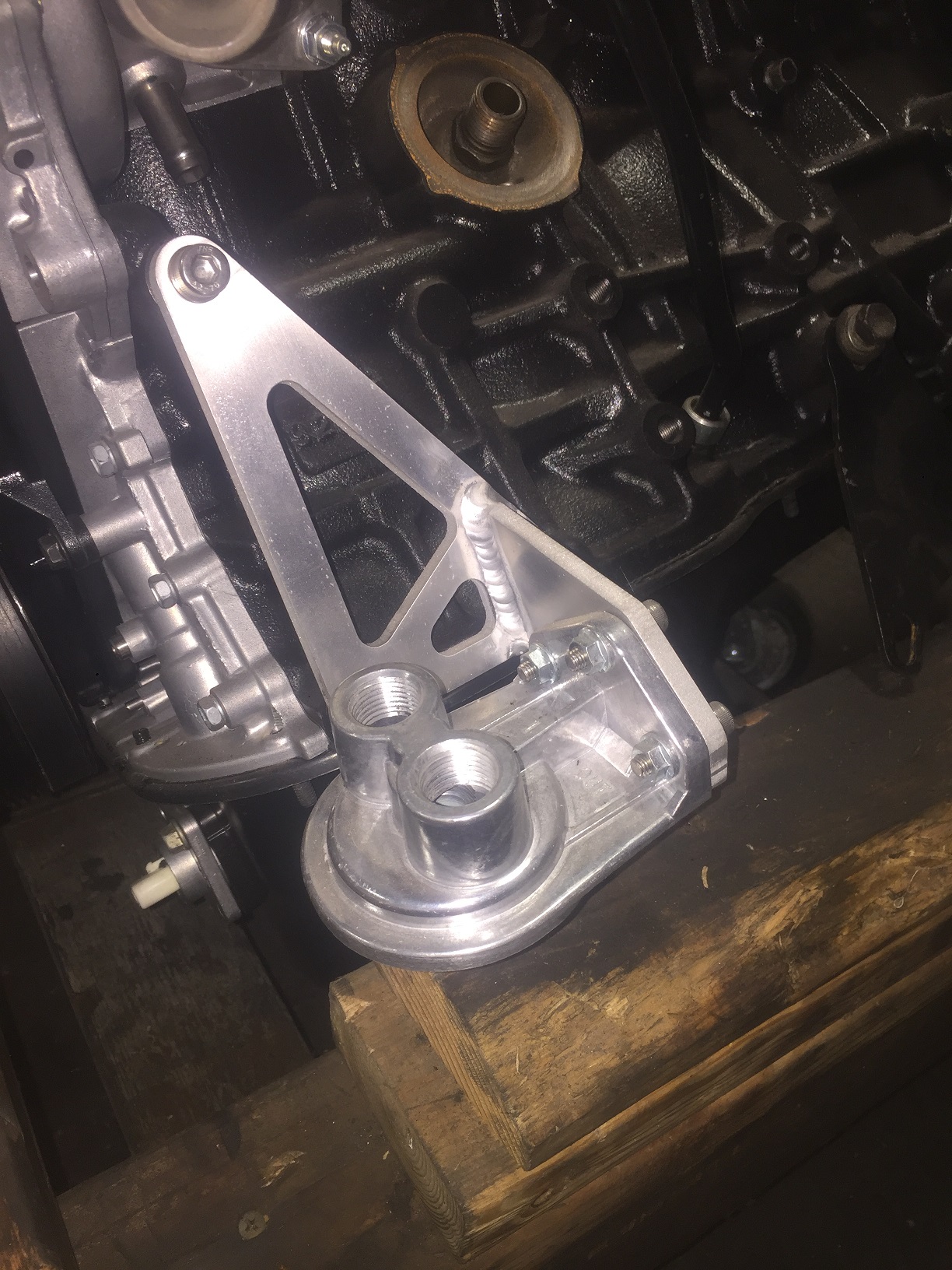

*Note: Image above with bracket and filter has the bracket in the raw finish.

*Note: There are two possible ways to weld the mounting bracket - bottom parallel to the ground (22 degrees from the engine block) for use with the OEM oil pans, or Normal to the block (sticking straight out) which puts the bottom of the bracket a 22 degree angle to the ground for use when the engine is equipped with a Moroso pan that kicks out under this area. Please let us know what oil pan you are using.


$65.00 each
Select Bracket Finish::
Include Filter Mount?:
What oil pan do you have?:
