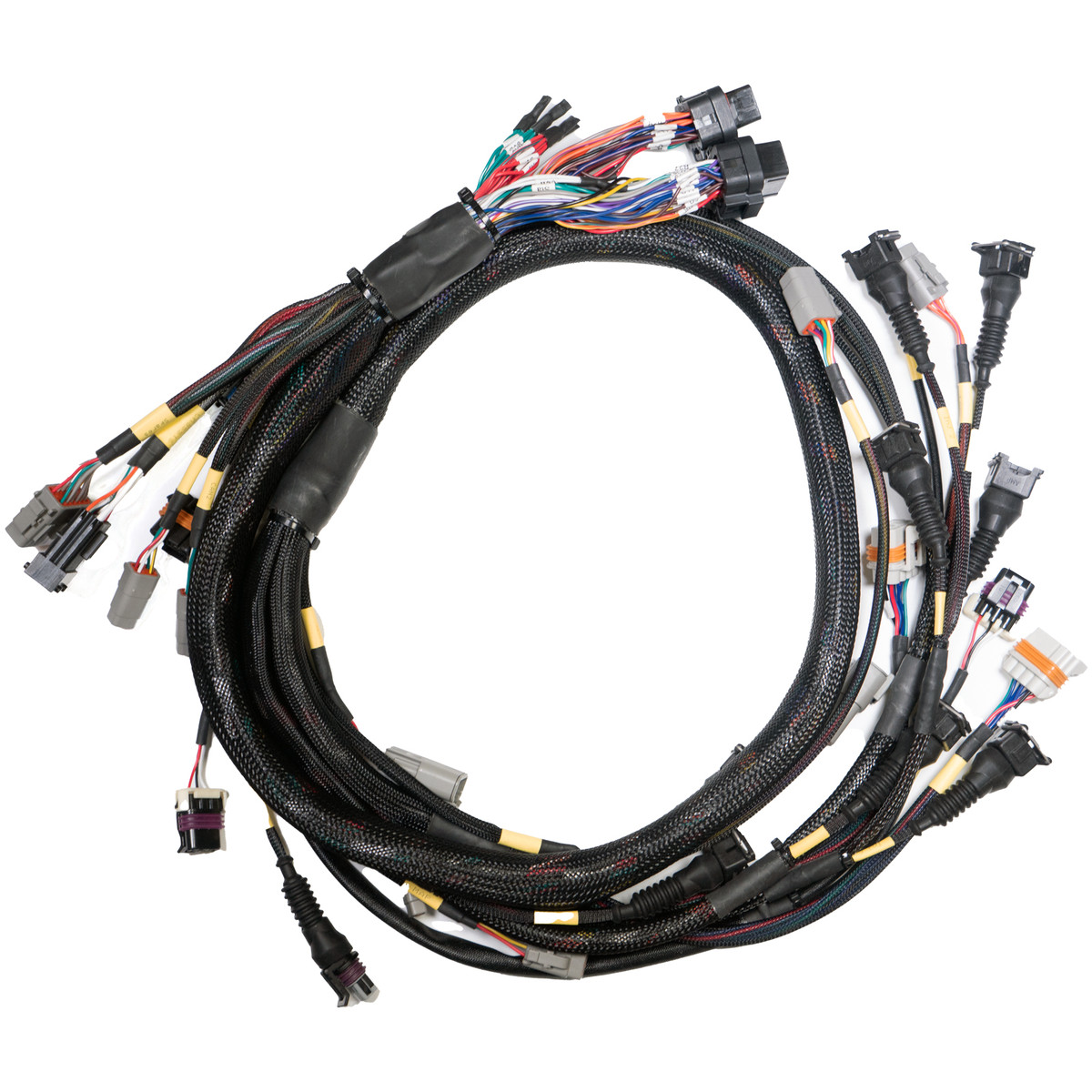

G4X XtremeX (Cable Operated and Drive-by-Wire Throttle Body)
See features tab and installation manual for further details.
*Notes for use with Gen 4 Engines
- A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor.
- A small modification is required to the crank sensor connector. See �crank connector� section in installation manual for details.
- Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN 101-0287
- To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306)
- To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link MAP sensor which is directly supported by the harness)
Gen3 PCLink MAP Files
Gen3 Cable Throttle Base Map for G4X XtremeX/StormX
Gen3 DBW Base Map for G4X XtremeX/StormX
Gen4 PCLink MAP Files
Gen4 Cable Throttle Base Map for G4X XtremeX/StormX
Gen4 DBW Base Map for G4X XtremeX/StormX
Manuals
Online Instruction Manual
- Supports both cable operated (using LS Stepper Adapter Loom) and Drive-by-Wire Throttle Bodies (using LS DBW Loom)
- Features a powered DTM4 CAN Connector compatible with Link CAN Accessories and Cables
- Bosch 2 pin EV1/Junior Timer Injector Connectors (Supports factory injectors � Use injector adapter Link PN 101-0287 if you have injectors with the USCar connector)
- Supports factory 7 Pin Coil Harness Connector
- Supports Link MAP Sensors (Use LS Map Adapter Loom to support factory Gen 3 MAP Sensor)
- Supports F Body Alternator (AC Delco PN 3351075)
$1025.00 each
