KO Racing Gen 4 Swap IC kit
KORacing Products » Toyota MR2 MK2 » Gen 4 Caldina Swap Parts

Bar and plate constructed intercooler core (similar to XS Power) with KO Racing pipes, hoses, clamps, spal fan, fan shroud, and recirculation shield. The use of this intercooler kit will greatly improve flow to the engine over the stock intercooler. This intercooler core has been dyno proven to flow better even than the Greddy core it was designed after. Upgrading the intercooler doesn't ususally increase power by itself, but will greatly improve the recovery rate and decrease the likelihood of heat soaking, and can improve the efficiency of the intake track when used in conjunction with other upgrades like larger turbochargers.

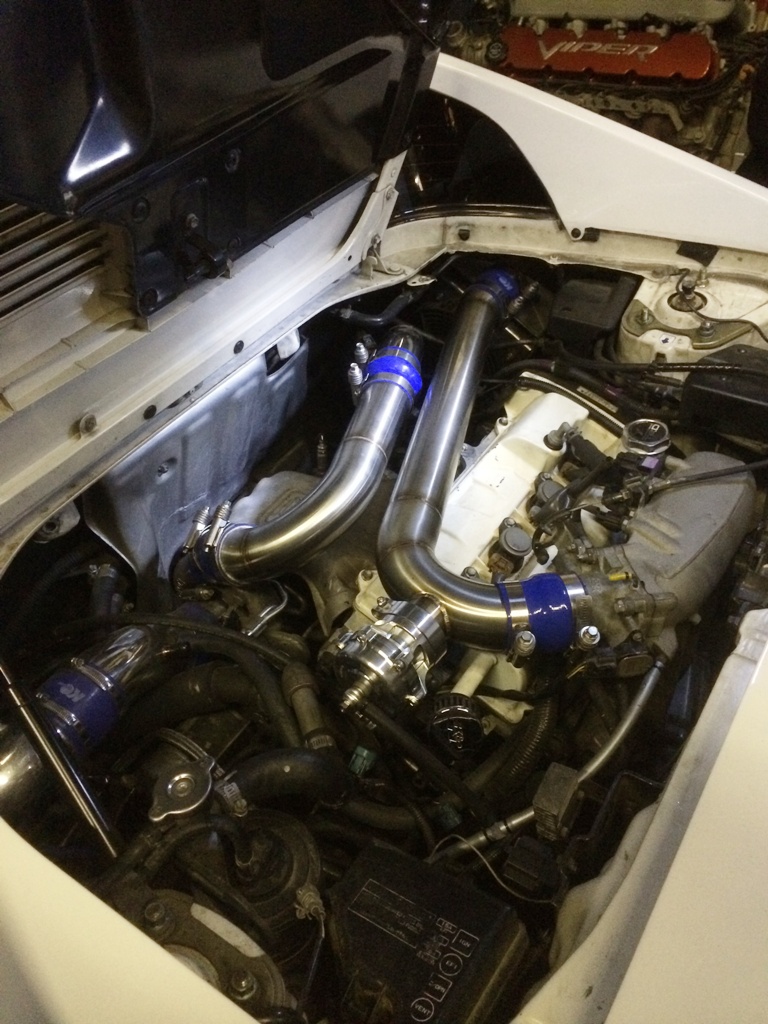

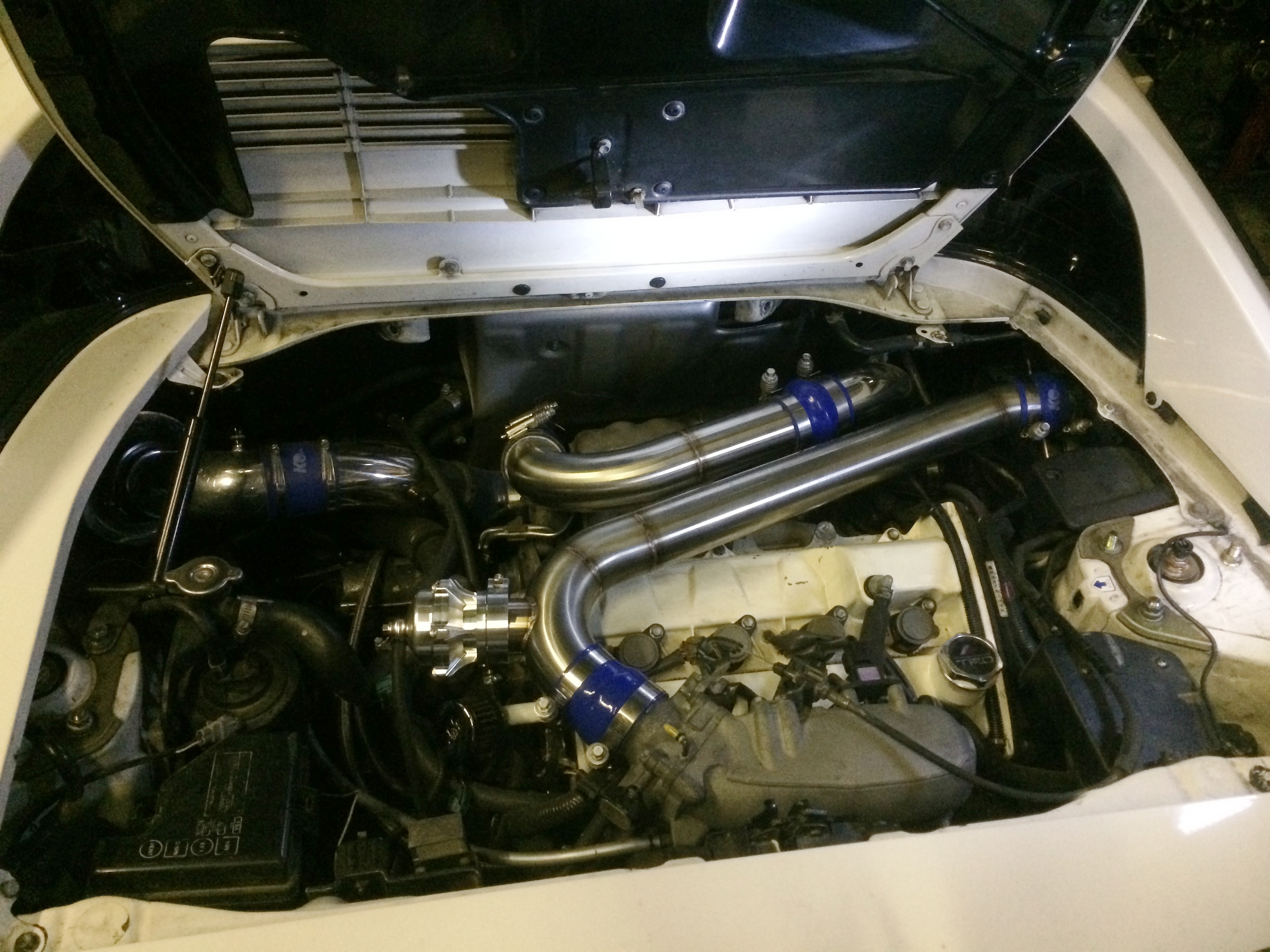

The pipes are heavy duty 16 gage 2.5" 304 stainless steel pipes TIG welded together by KO Racing with large beads rolled in the end to prevent blowing them off under boost. The clamps used are constant tension fully lined worm drive clamps made from stainless steel as well. These heavy duty clamps evenly clamps around their entire circumference and the spring packs on the adjustment screws maintain that tension through all temperature and pressure extremes. The fan is a Spal(TM) 7.5" electric fan; one of the best performing fan manufacturers in the market under real world conditions (others claim higher performance at no load -- but a fan never operates under no load).

The way these pipes are routed allows the use of the widely popular TRD strut tower brace. This kit does include all piping from the turbo to the intercooler and from the intercooler to the throttle body.

*Note: You will need to wire the fan to your stock wiring as the plug won't match. Blue is positive, black is negative on the provided fan.

*NOTE: These are made to order. The standard lead time is 3-4 weeks to fabricate.


$720.00 per Kit
Hose Color:
BOV Flange:
Intercooler Source:
Finish:
