MX5 Link 90-95

MX5 NB1 Link 99-00

MX5 NB2 Link 01-05

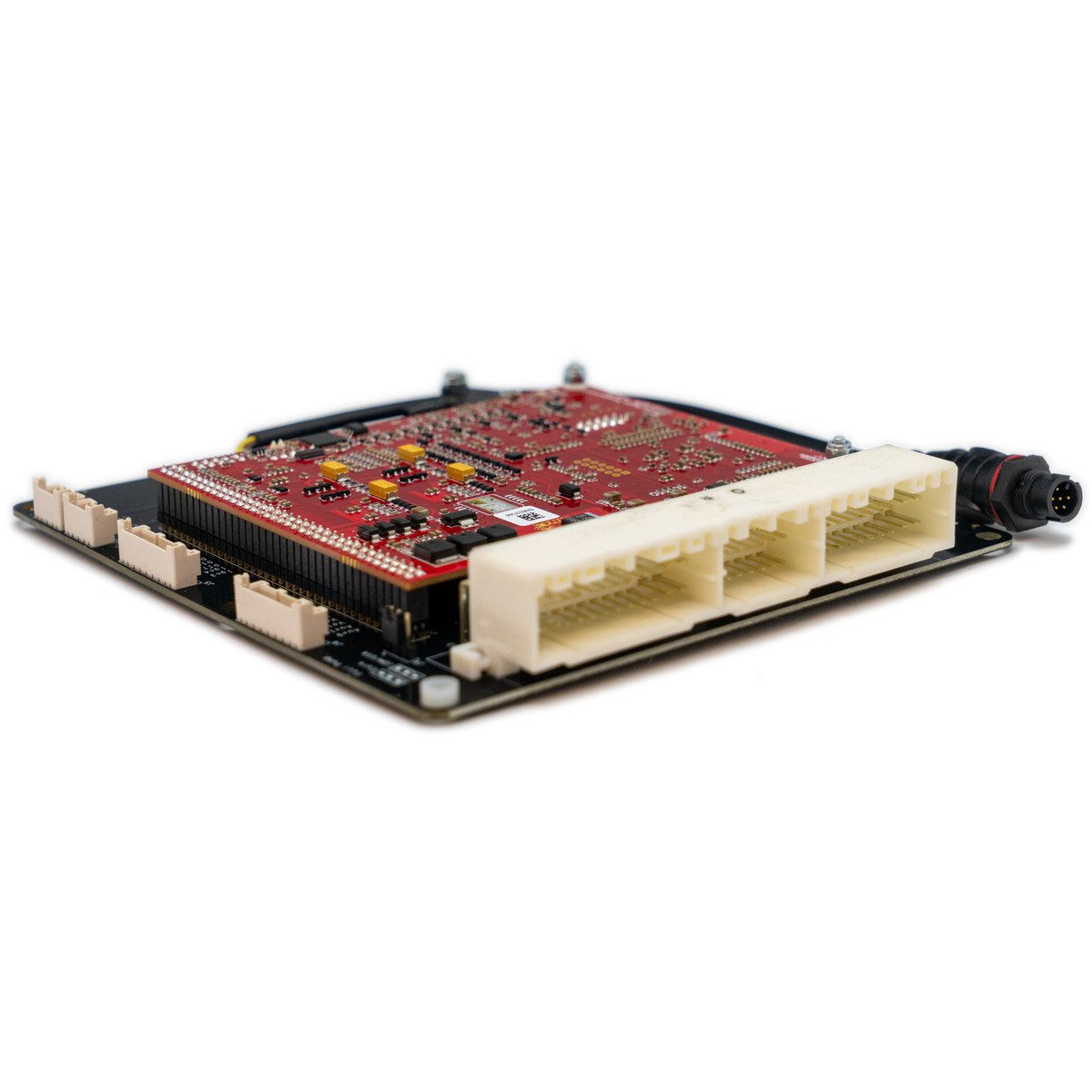

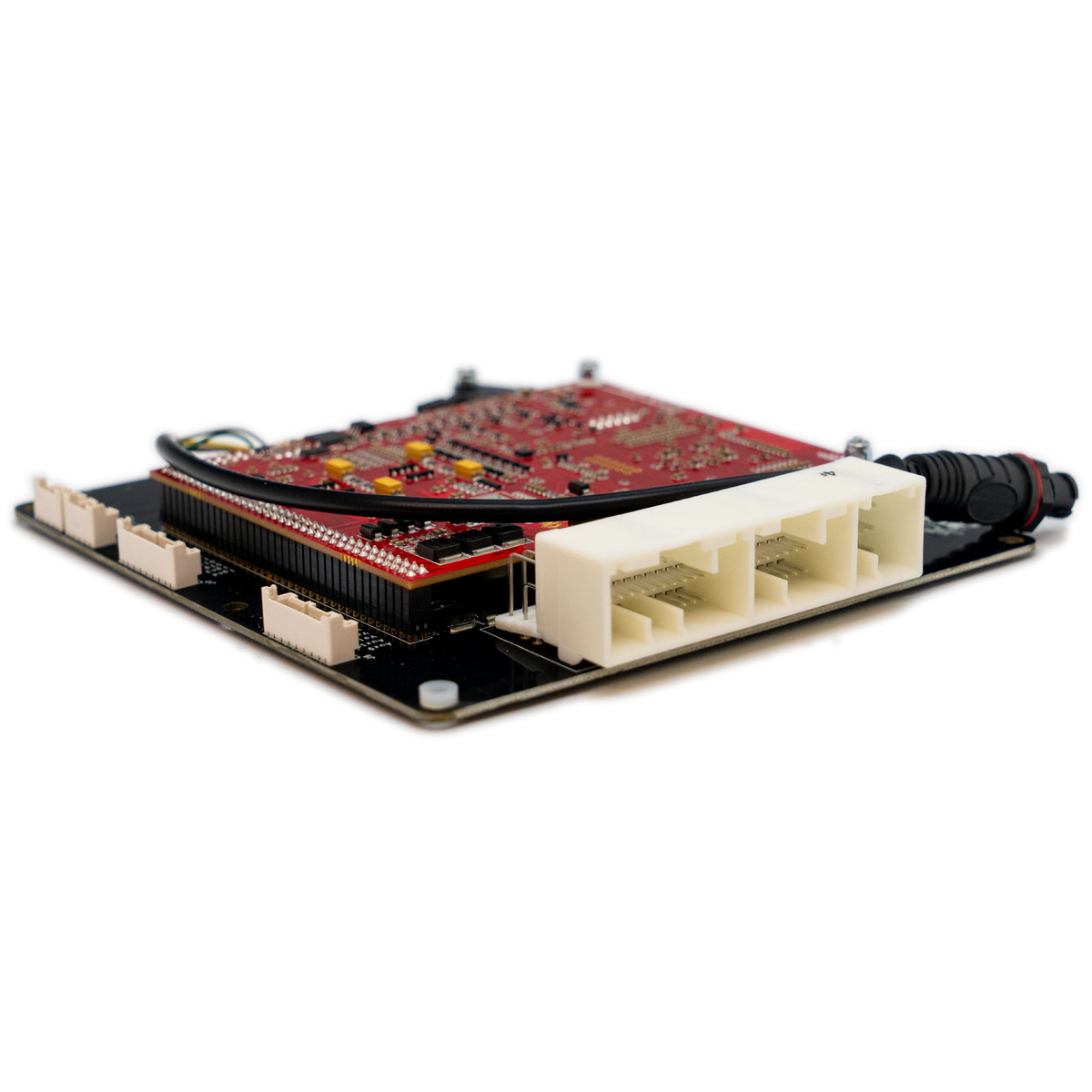

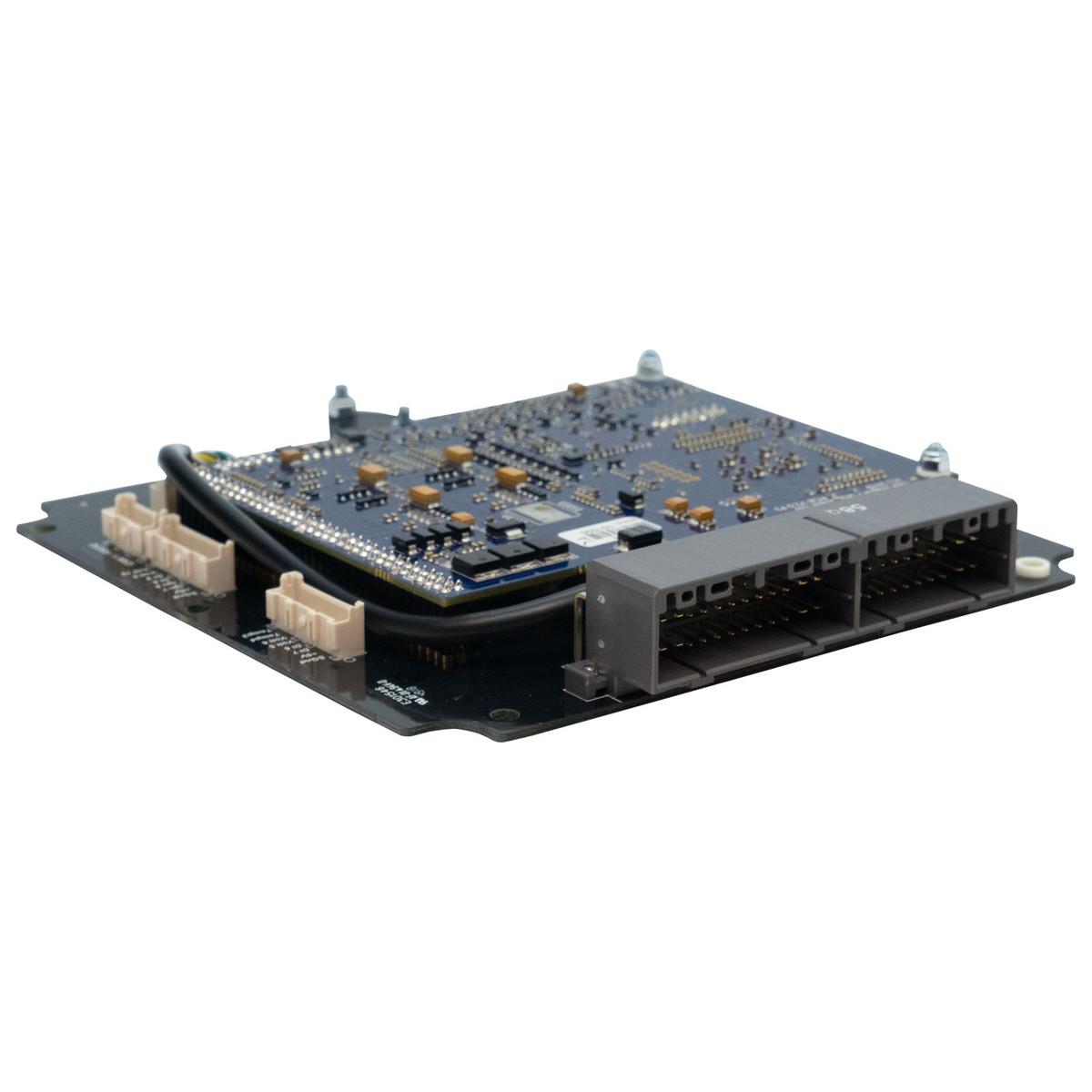

G4X PlugIn Key Features:
• Onboard 4 or 7 bar MAP sensor
• Up to 6D fuel and ignition mapping
• Sequential fuel delivery (94-95 models)*
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features - antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune - automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• On-board statistics tracking (maximum values, limits reached, engine starts counter, etc.)
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• Up to 512Mbyte internal logging memory
• Staged injection
• Knock detection per cylinder (*NB models only - can be added to NA model for additional fee)

*NOTE: Sequential injection requires running additional wires to two of the injectors from the ecu on 90-93 models)

This is ecu is good for swapped vehicles also as it can support all NA6, NA8, NB1, and NB2 ecu functions with the addition of some modification/wiring for things like knock detection. KO Racing can assist in getting these changes made prior to shipment for your specific needs.

NOTE: For 96-97 Models - contact us for a custom adapter for these year vehicles.
